Screw plug, PG thread Pg 48
morepic-1 morepic-2

Screw plug, PG thread

Item no. 2090632 | EAN 4012197455965

Product description
Product description

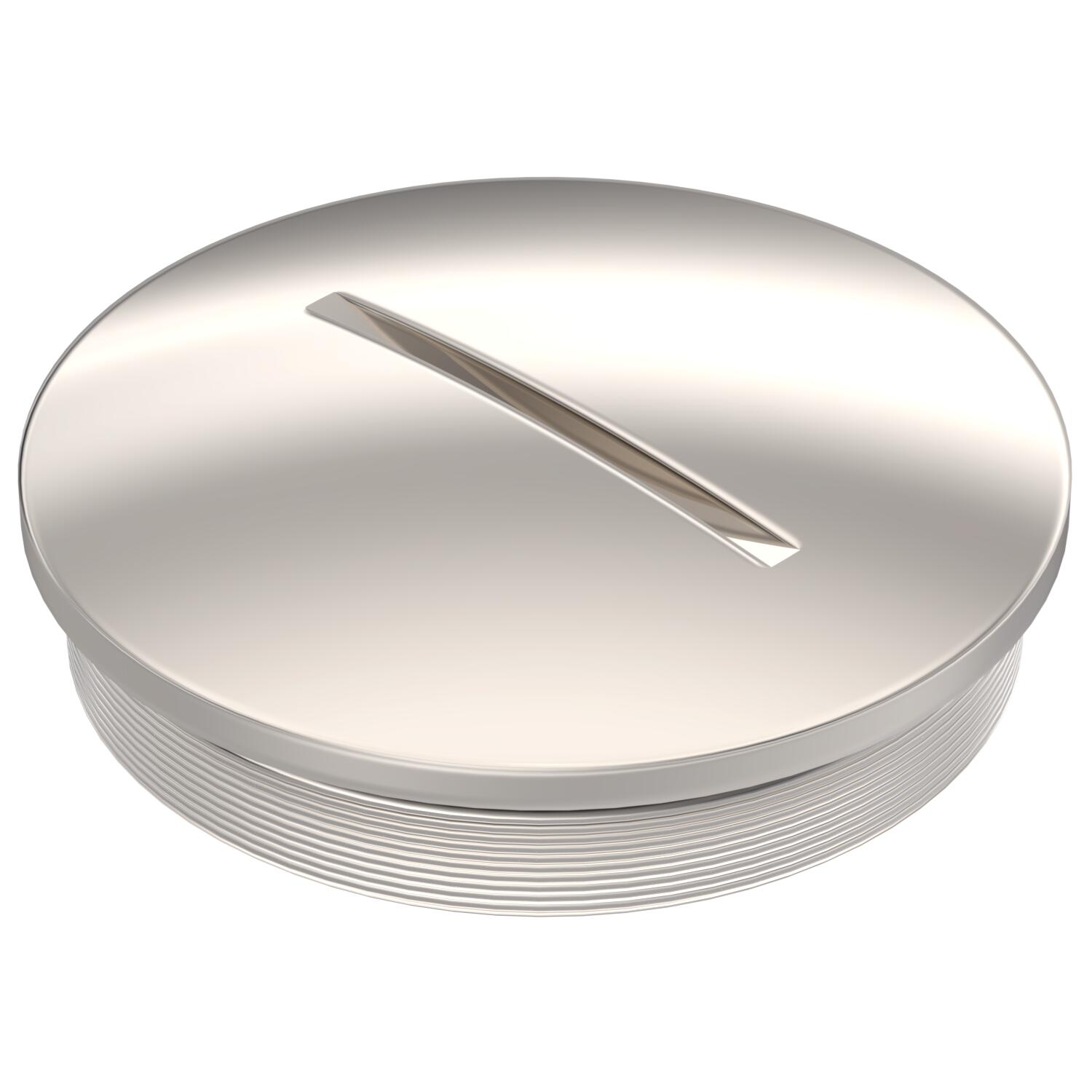

Metal screw plug with integrated sealing ring To close unused threaded openings, e.g. in housings or junction and branch boxes. With PG thread to DIN EN 46320 or DIN 40430. Protection class IP 68 (5 bar/1 h).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread Pg
  • Protection rating IP 68
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)
Technical data

Technical data

Dimension Ø64x16
explosion-proof no
Fibre-glass reinforced no
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant no
Material Brass
Nominal thread size metric/PG 48
Protection rating IP68
Surface Nickel-plated
Thread Pg 48
Thread increase 1,59 mm
Thread type PG

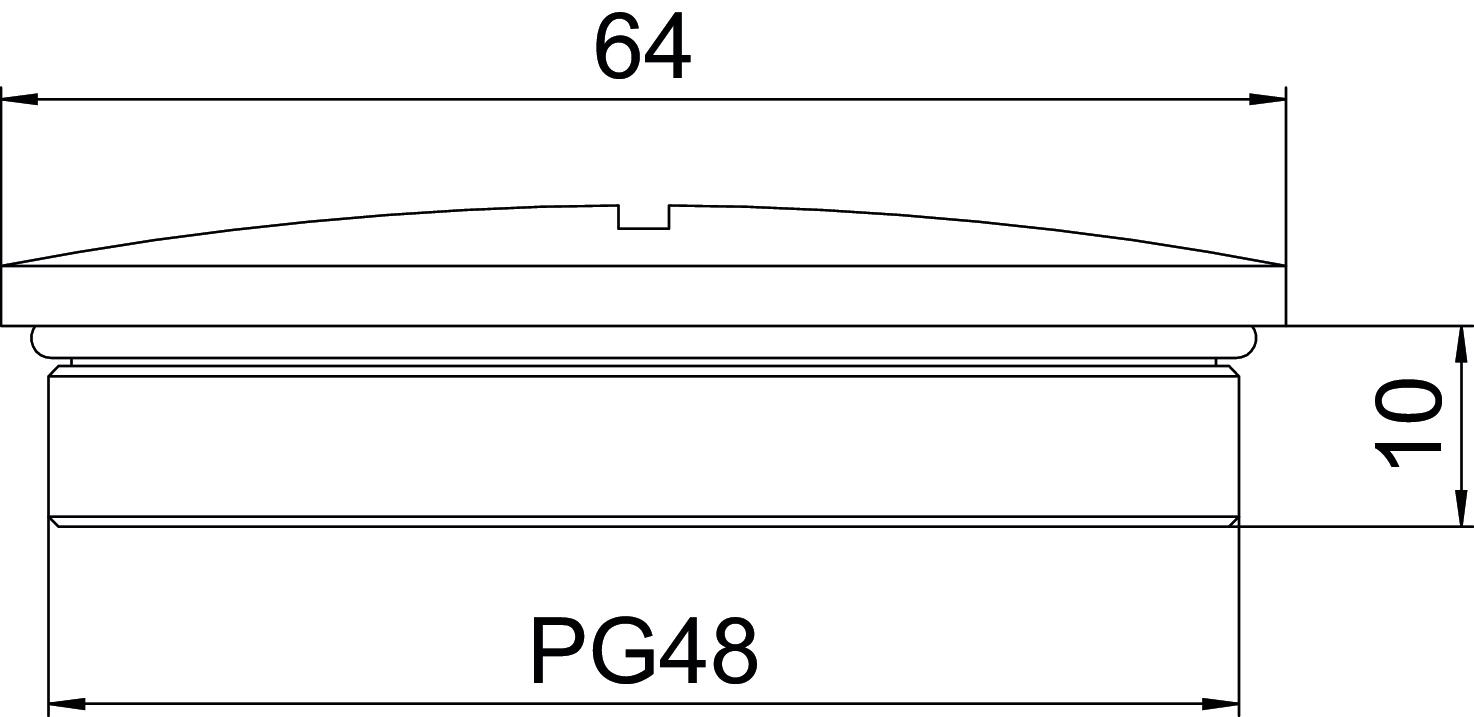

Dimensions

Dimension D 64 mm
Dimension L 10 mm
Height 16 mm
Length 64 mm
Width 64 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0089 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0089 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-27T00:00:00.000+0200
All types

All types

Types Thread Item no. Quantity SSU
168 MS PG 7 + O Pg 7 2090610
100 piece
168 MS PG 9 + O Pg 9 2090612
100 piece
168 MS PG11 + O Pg 11 2090614
100 piece
168 MS PG13 + O Pg 13,5 2090616
100 piece
168 MS PG16 + O Pg 16 2090618
100 piece
168 MS PG21 + O Pg 21 2090620
50 piece
168 MS PG29 + O Pg 29 2090624
50 piece
168 MS PG36 + O Pg 36 2090626
50 piece
168 MS PG42 + O Pg 42 2090630
25 piece
168 MS PG48 + O Pg 48 2090632
25 piece
