Separating bracket for wall mounting 25 | 76 | 35 | 20

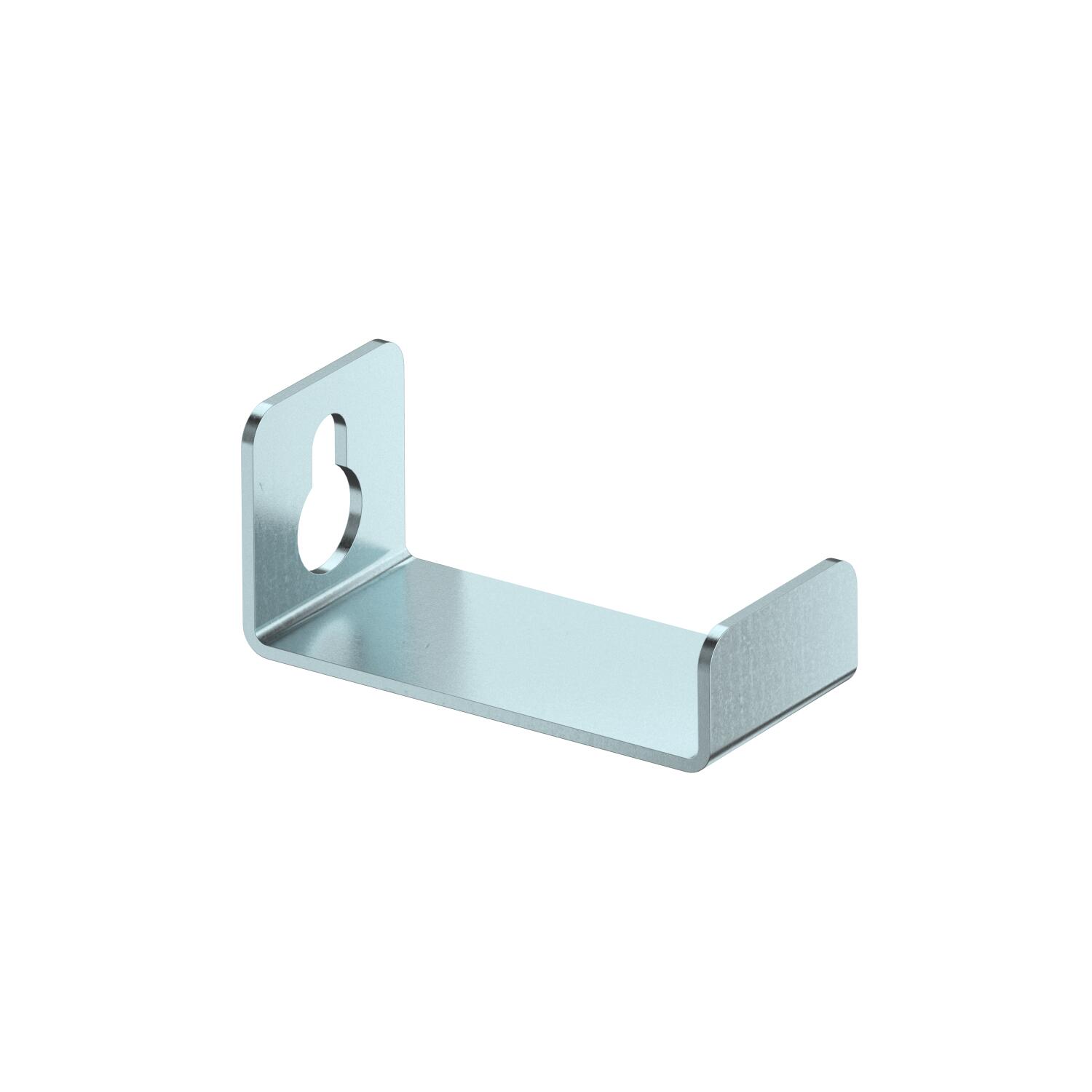

Separating bracket for wall mounting

Item no. 7215480 | EAN 4012196835386

Item no. / Types

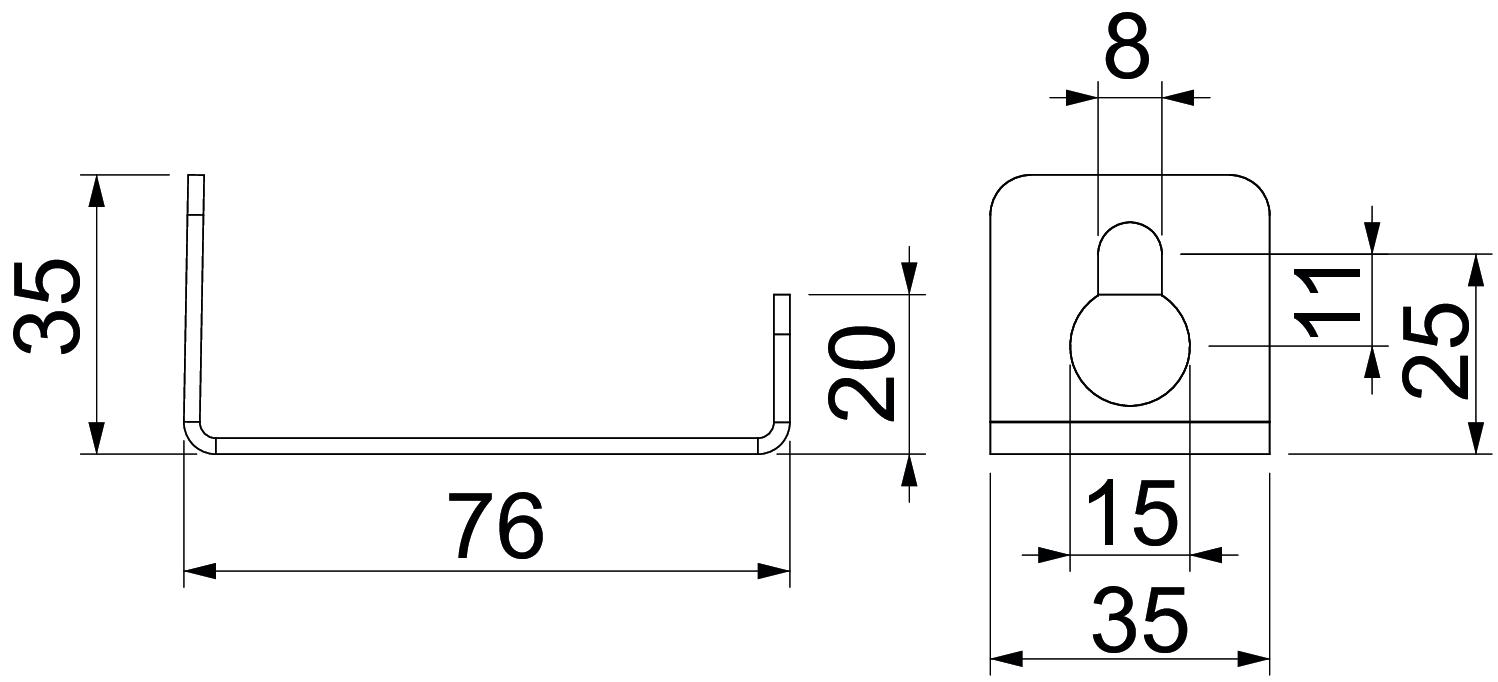

Dimension A

Dimension B

Dimension H

Dimension h

Product description

Product description

Separating bracket as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the wall, type PLCD D060810 and type PLCD D090810. Mounting of the bracket directly on the fastening anchors of the fire protection duct.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,2237 kg CO2e / 1 Piece
Colour	zinc
Dimension	50x76x35
Dimension A	25 mm
Dimension B	76 mm
Dimension h	20 mm

Dimension H	35 mm
Duct height, internal	80 mm
Duct width, internal	100 mm
Fastening type	Screw-on
Material	Steel
Surface	Strip galvanized

All types

All types

Types	Dimension A	Dimension B	Dimension H	Dimension h	Item no.	Quantity	SSU
PLCD-SB0810	25 mm	76 mm	35 mm	20 mm	7215480	piece	25 piece
PLCD-SB1220	50 mm	116 mm	60 mm	65 mm	7215484	piece	25 piece
PLCD-SC0810	25 mm	50 mm	35 mm	76 mm	7215490	piece	25 piece
PLCD-SC1220	50 mm	100 mm	60 mm	116 mm	7215494	piece	25 piece
