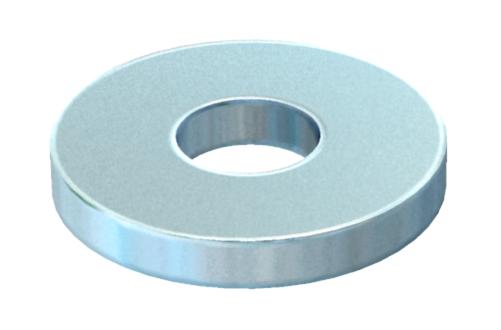

Spacer
Item no. 2205097 | EAN 4012195044970
- Product description
-
Product descriptionTo increase the clamping height of pressure clips from 10 to 13 mm for large cable cross-sections.
-
- Technical data
-
Technical data

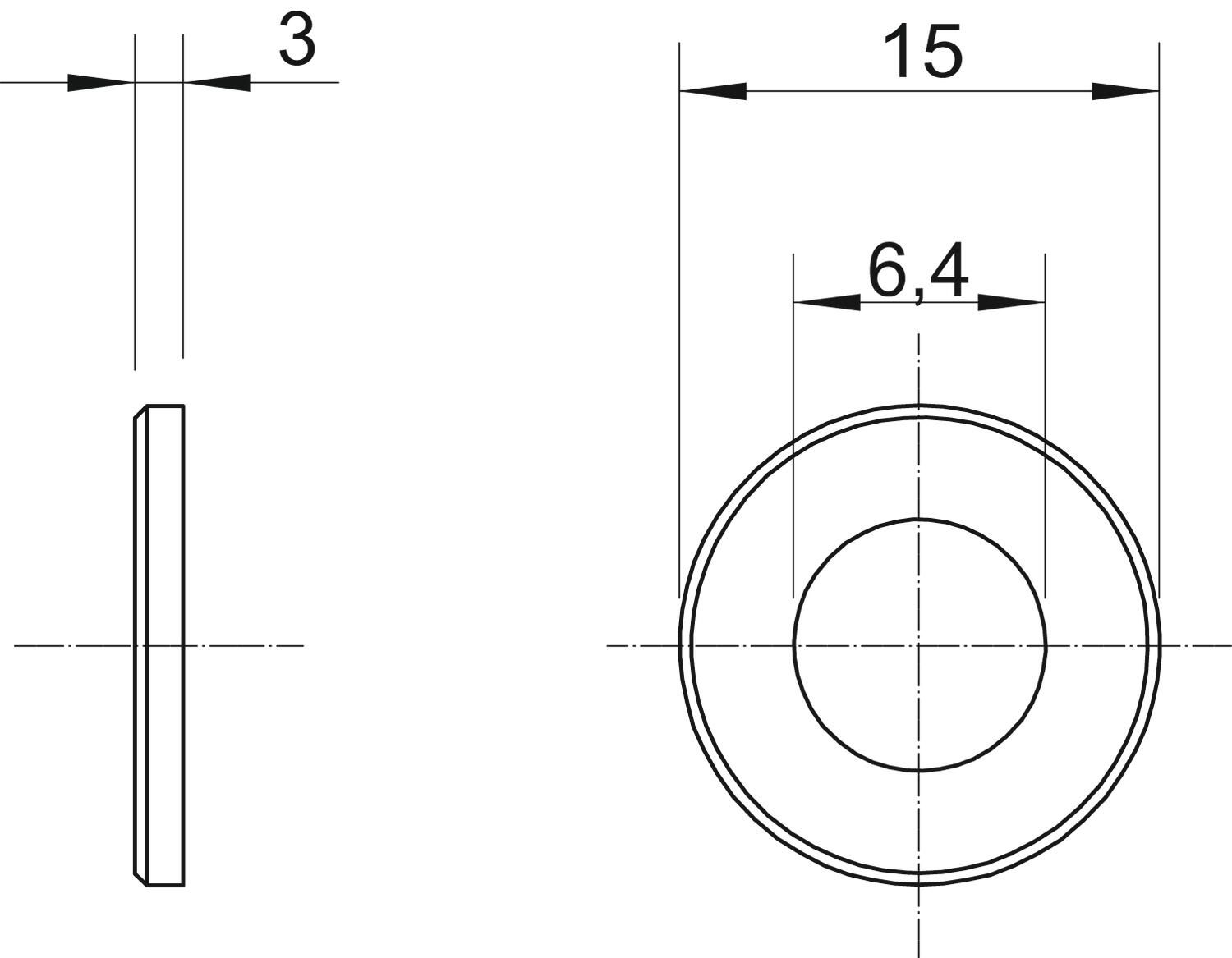

Accessories yes Diameter 15 mm Dimension Ø15mmx3mm External diameter 15 mm Faceted no Halogen-free no Hardened no Inner diameter 6,4 mm Material Steel Material thickness 3 mm Spare part no Surface Electrogalvanised Dimensions
Dimension d 6,4 mm Dimension d min. 15 mm Dimension h 3 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0083 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0083 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 2033 D 15x3 G / 2205097 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2033 D 15x3 G / 2205097 , 0.06MB , pdfREACH Declaration of conformity 2033 D 15x3 G / 2205097 , 0.12MB , pdfRoHS Declaration of conformity 2033 D 15x3 G / 2205097 , 0.13MB , pdf
