Support clamp, with pipe seat at side 72 | 40 | 47 | 20 | 25 | | 72 | 15 | 20
morepic-1 morepic-2

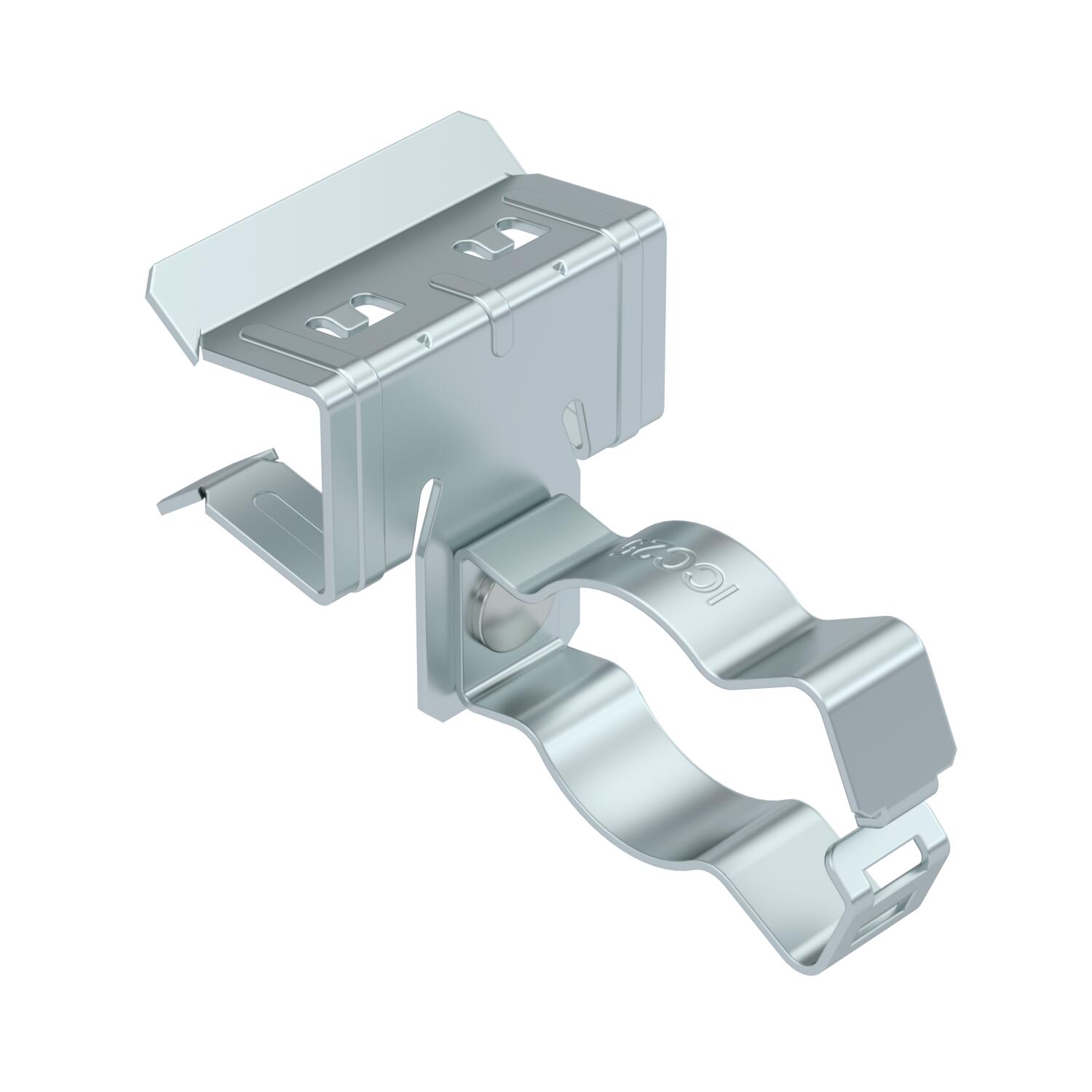

Support clamp, with pipe seat at side

Item no. 1488373 | EAN 4012197380885

72 mm
40 mm
47 mm
20 mm
25 mm
72 mm
Product description
Product description
Support clamp for mounting pipes. Closed pipe seat at side. Fastening through knocking onto steel girders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Breaking load 0,45 kN
Colour zinc
Connection type/component Pipe/cable
Dimension 15-20mm
Fastening type Clamp
Flange thickness F max. 20 mm
Flange thickness F min. 15 mm
Hinge, adjustable no
Hinged no
Material Steel
Pipe/cable diameter, max. 25 mm
Pipe/cable diameter, min. 20 mm
Product series Support clamp
ROHS-conformant yes
Surface Zinc slat

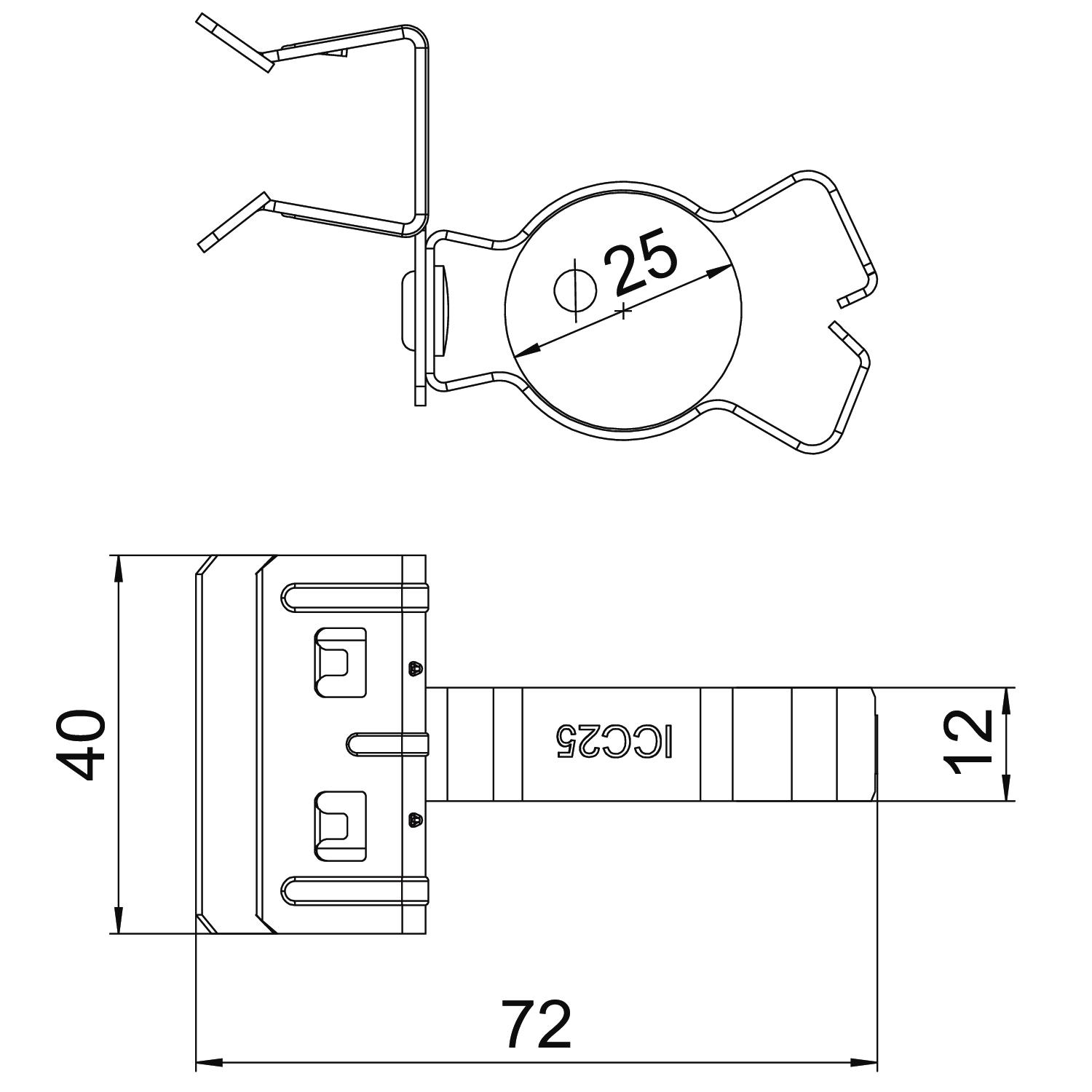

Dimensions

Dimension L 72 mm
Dimension W 40 mm
Height 47 mm
Length 72 mm
Width 40 mm
All types

All types

Types Length Width Height Pipe/cable diameter, min. Pipe/cable diameter, max. Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
SCHPC 10-15 D25 72 mm 40 mm 47 mm 20 mm 25 mm 72 mm 10 mm 15 mm 1488363
50 piece
SCHPC 15-20 D25 72 mm 40 mm 47 mm 20 mm 25 mm 72 mm 15 mm 20 mm 1488373
50 piece
Downloads

Download

Download

EU declaration of conformity SCHPC 15-20 D25 / 1488373 , 0.10MB , pdf
Download
UK Declaration of Conformity SCHPC 15-20 D25 / 1488373 , 0.09MB , pdf
Download
REACH Declaration of conformity SCHPC 15-20 D25 / 1488373 , 0.13MB , pdf
Download
RoHS Declaration of conformity SCHPC 15-20 D25 / 1488373 , 0.13MB , pdf
Download

SCHPC 15-20 D25 / 1488373
