Support, duct width 100 mm, pure white
Item no. 7218166 | EAN 4012197274740
- Product description
-

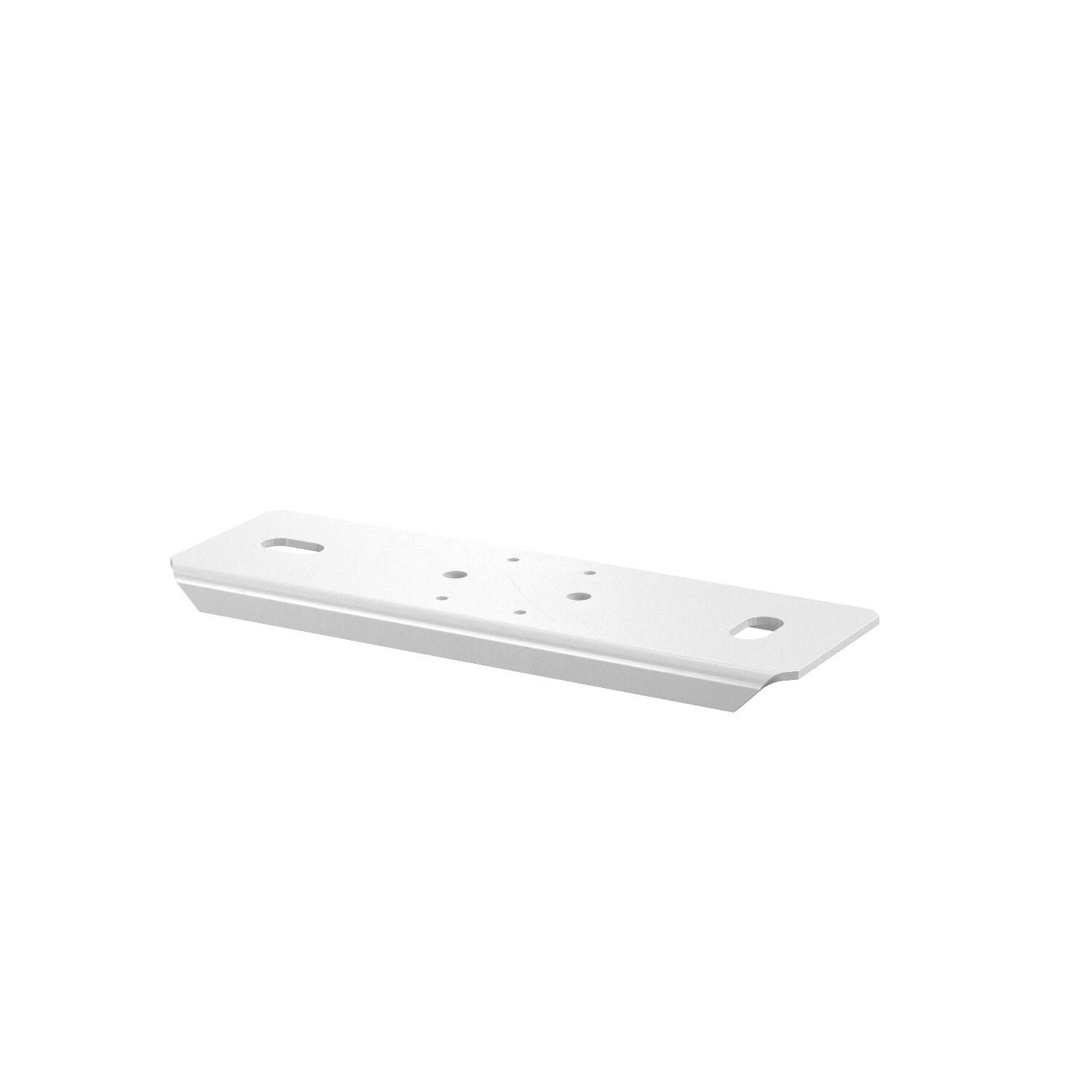

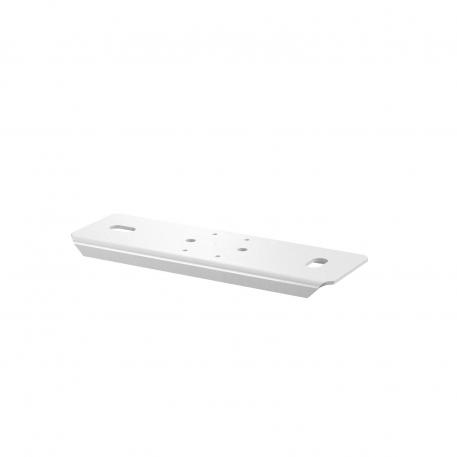

Product descriptionSupport for suspended mounting of the PYROLINE® Rapid PLM installation duct.
Suspension point for accepting two M10 threaded rods and suitable as a support at joints of ducts and fittings.
-
- Technical data
-
Technical data
Accessories yes Colour Pure white; RAL 9010 Dimension 200x67x12 Material Steel Spare part no Surface Strip galvanised Type of accessory Threaded rod adapter Dimensions

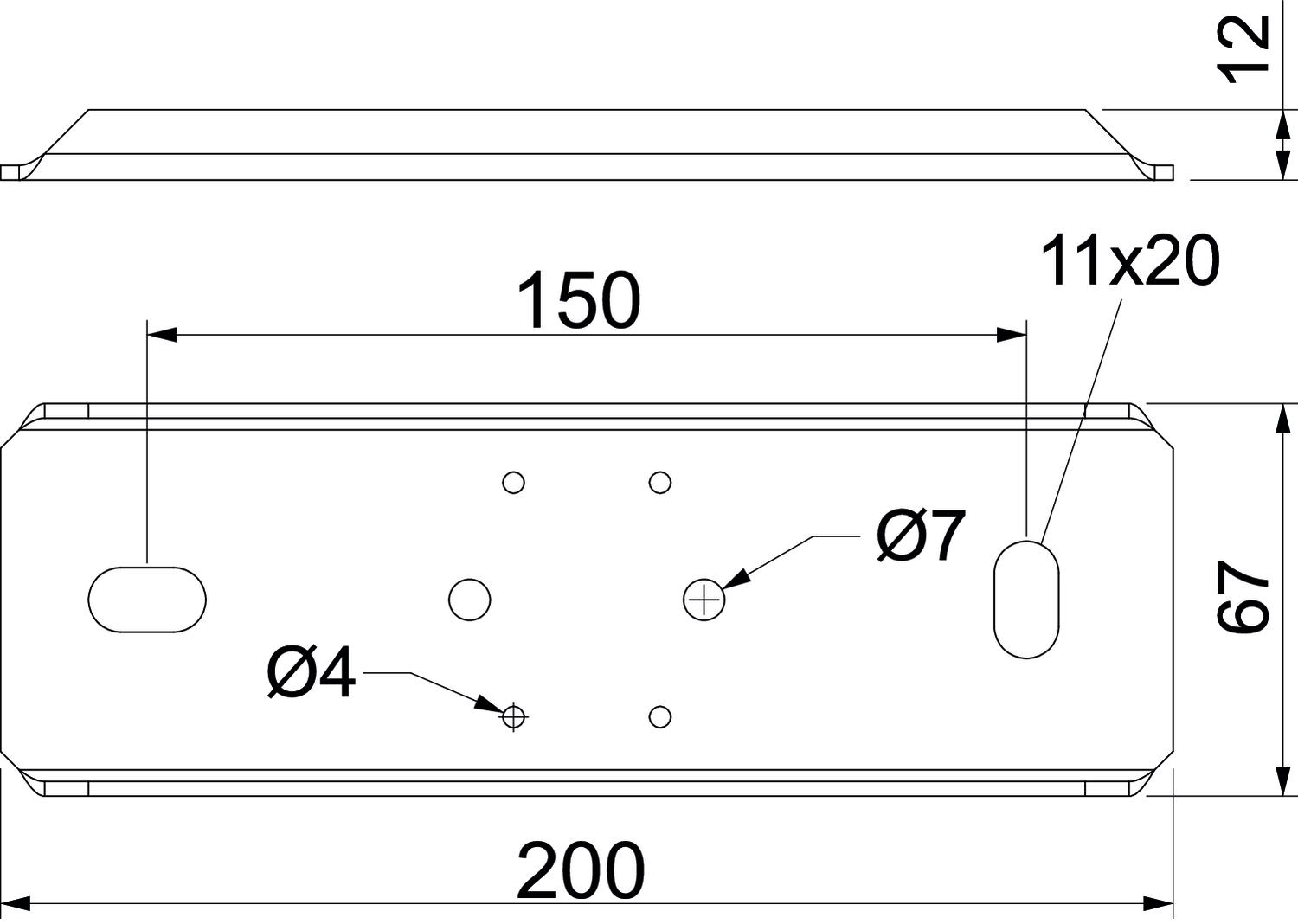

Dimension B 200 mm Dimension b 150 mm Length 200 mm Width 67 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,0731 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,0731 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet PLM SU 100 RW / 7218166 , 0.16MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM SU 100 RW / 7218166 , 0.11MB , pdfDeclaration of performance PLM SU 100 RW / 7218166 , 0.78MB , pdfREACH Declaration of conformity PLM SU 100 RW / 7218166 , 0.13MB , pdfRoHS Declaration of conformity PLM SU 100 RW / 7218166 , 0.13MB , pdfLabel approval VDE marks approval PYROLINE Rapid PLM , 0.27MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
