Surge arrester V10 Compact 1+N/PE | 255 | IP20

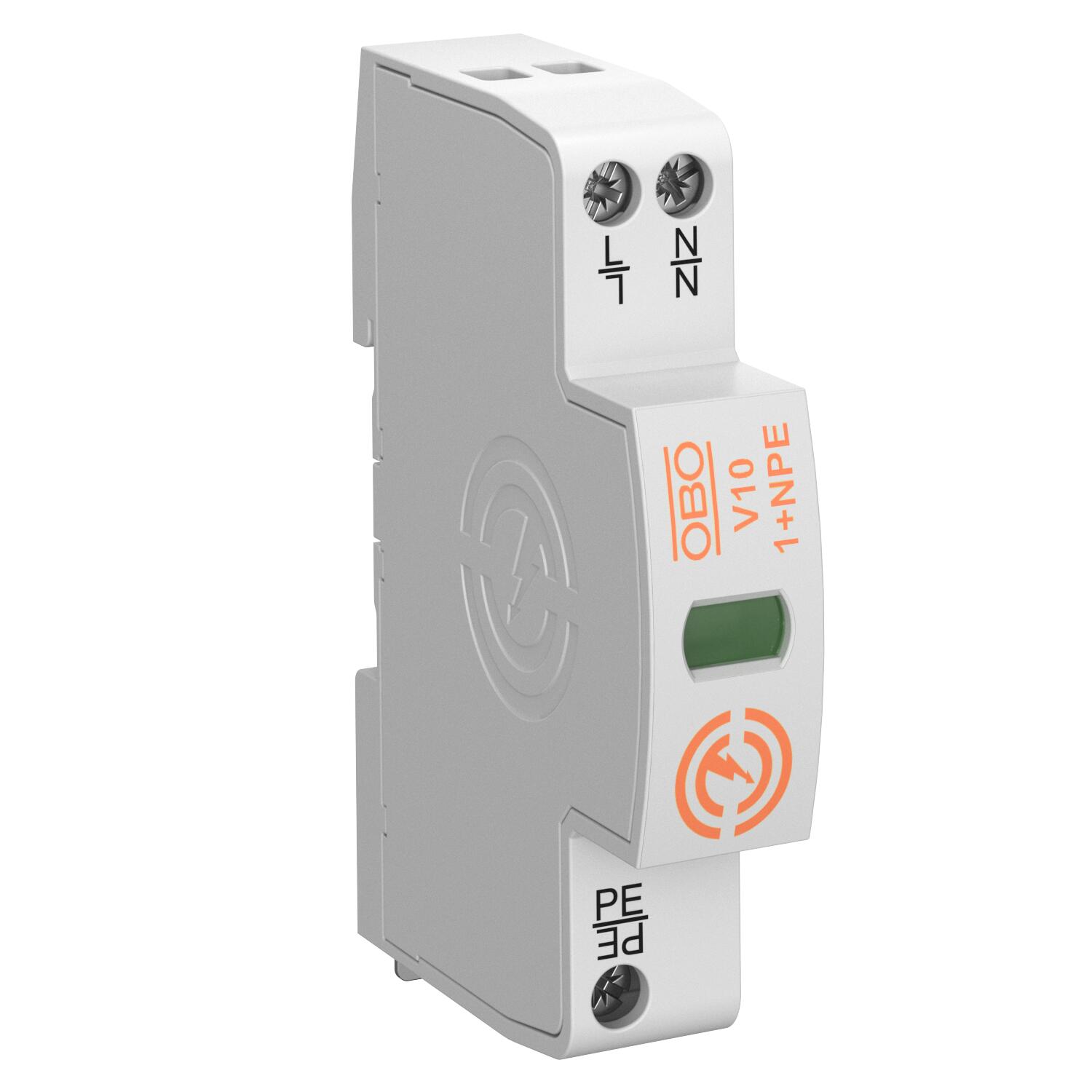

Surge arrester V10 Compact

Item no. 5093395 | EAN 4012197444396

Item no. / Types

Pole version

Maximum continuous voltage AC

Protection rating	IP20

Product description

Product description

Surge protective device, compact module, type 2+3

• Surge protection in sub-distributors according to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity up to 20 kA (8/20) in total
• High-performance varistor systems
• Including thermal and dynamic separating device and visual function display

Application: Sub-/floor distributors as well as device protection

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	20 kA
CO2 Footprint (GWP) Cradle-to-Gate	1,7031 kg CO2e / 1 Piece
Conductor cross-section, flexible (fine-wire), max.	8 AWG
Conductor cross-section, flexible (fine-wire), max.	10 mm²
Conductor cross-section, flexible (fine-wire), min.	2,5 mm²
Conductor cross-section, flexible (fine-wire), min.	13 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.	10 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	8 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	13 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²

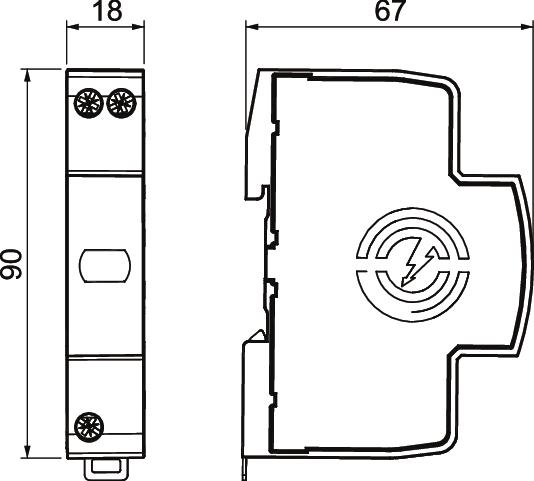

Dimension	255V
Explosion-tested version	no
Follow current quenching capacity (eff) [N-PE]	0,1 kA
Humidity, max.	95 %
Humidity, min.	5 %
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
Lightning protection zone LPZ	1→3
Max. mains-side overcurrent protection	63 A gG
Maximum back-up fuse	63 A
Maximum continuous voltage AC	255 V
Maximum discharge current (8/20 μs)	20 kA
Network form	All
Nominal discharge current (8/20 µs) [L-N]	10 kA

Nominal discharge current (8/20 µs) [N-PE]	10 kA
Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	70 °C
Operating temperature, min.	-40 °C
Permitted temperature range, max.	70 °C
Permitted temperature range, min.	-40 °C
Pole number	2
Pole version	1+N/PE
Protection level [L-N]	≤1,1
Protection rating	IP20
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 2+3
SPD to IEC 61643-1	Class II+III
Test class, type 1	no
Test class, type 2	yes
Test class, type 3	yes
TN network form	yes
TN-C-S network form	yes
TN-S network form	yes
Torque	2 Nm
TT network form	yes
