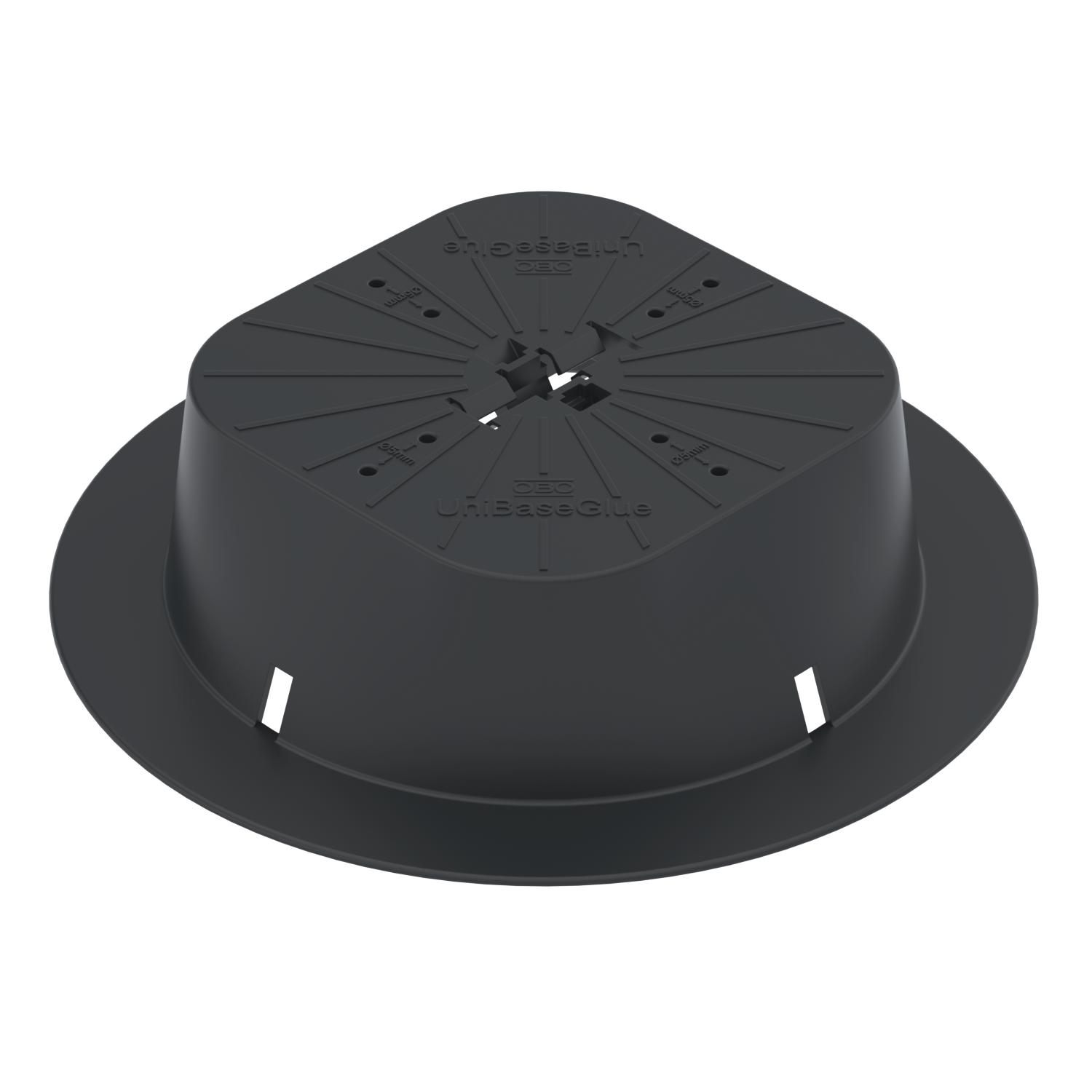

Universal stand UniBase Glue for glueing
Item no. 5403395 | EAN 4012197378035
- Product description
-
Product descriptionUniversal stand for gluing on flat roofs. Can be used for routing cables with cable trays or mesh cable trays in conjunction with 165 MBG HGRM roof conductor holders. Gluing collar must be selected according to the substrate.
-
- Technical data
-
Technical data

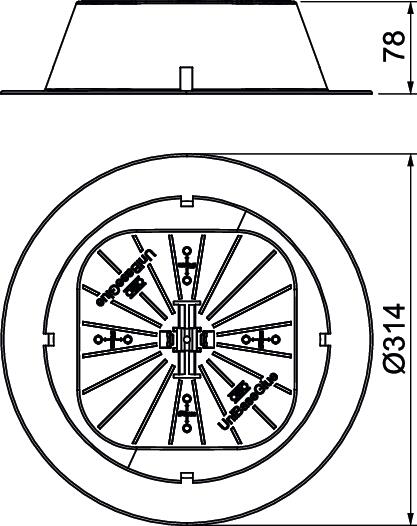

CO2 Footprint (GWP) Cradle-to-Gate 0,0088 kg CO2e / 1 Piece Colour Black Diameter 314 mm Fit 5 mm Height 78 mm Length 314 mm Material Acrylnitrile-styrene-acrylester Width 314 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Adapter for TP 45 support profile
UniBase TMP 5403397 16 piece Mounting accessories
Products Types Item no. Quantity SSU
Mesh cable tray adapter for roof conductor holder
165 MBG HGRM 5218886 50 piece
Flat conductor adapter for roof conductor holder, type 165/MBG
165 MBG HFL 5218885 12 piece - Downloads
-
Data sheet UniBase Glue / 5403395 , 0.14MB , pdfMounting instructions Photovoltaik-Montagesysteme Magic PV Flat Glue für Flachdächer , 3.61MB , pdfMounting instructions PV mounting systems Magic PV Flat Pro , 5.39MB , pdf
