Wall and support bracket AW 15 2L
Item no. 6420924 | EAN 4012195076841
- Product description
-

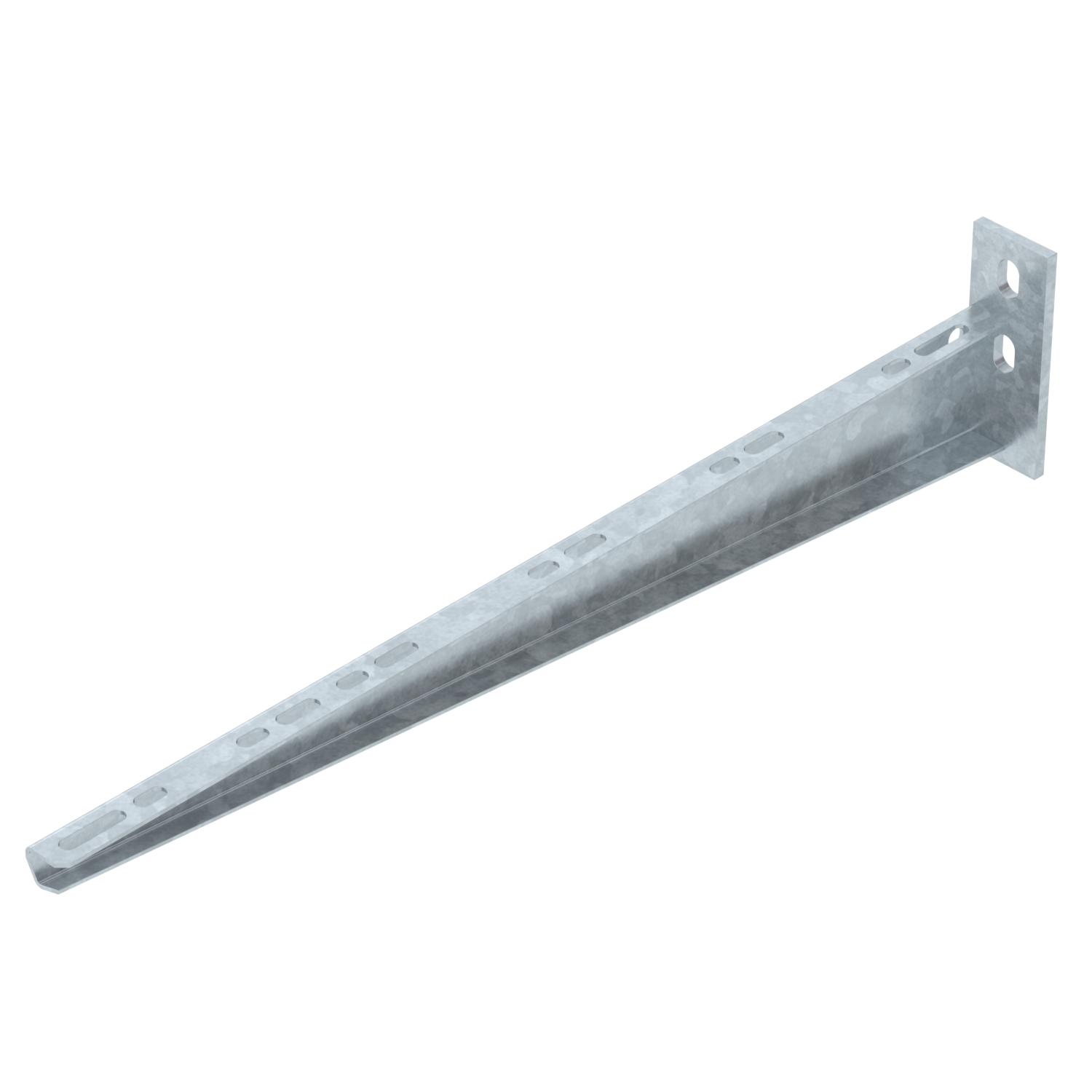

Product descriptionWall and support bracket with welded head plate and two fastening holes.
The double-perforated bracket offers the special option of double anchoring on lightweight partitions and light masonry.
-
- Technical data
-
Technical data

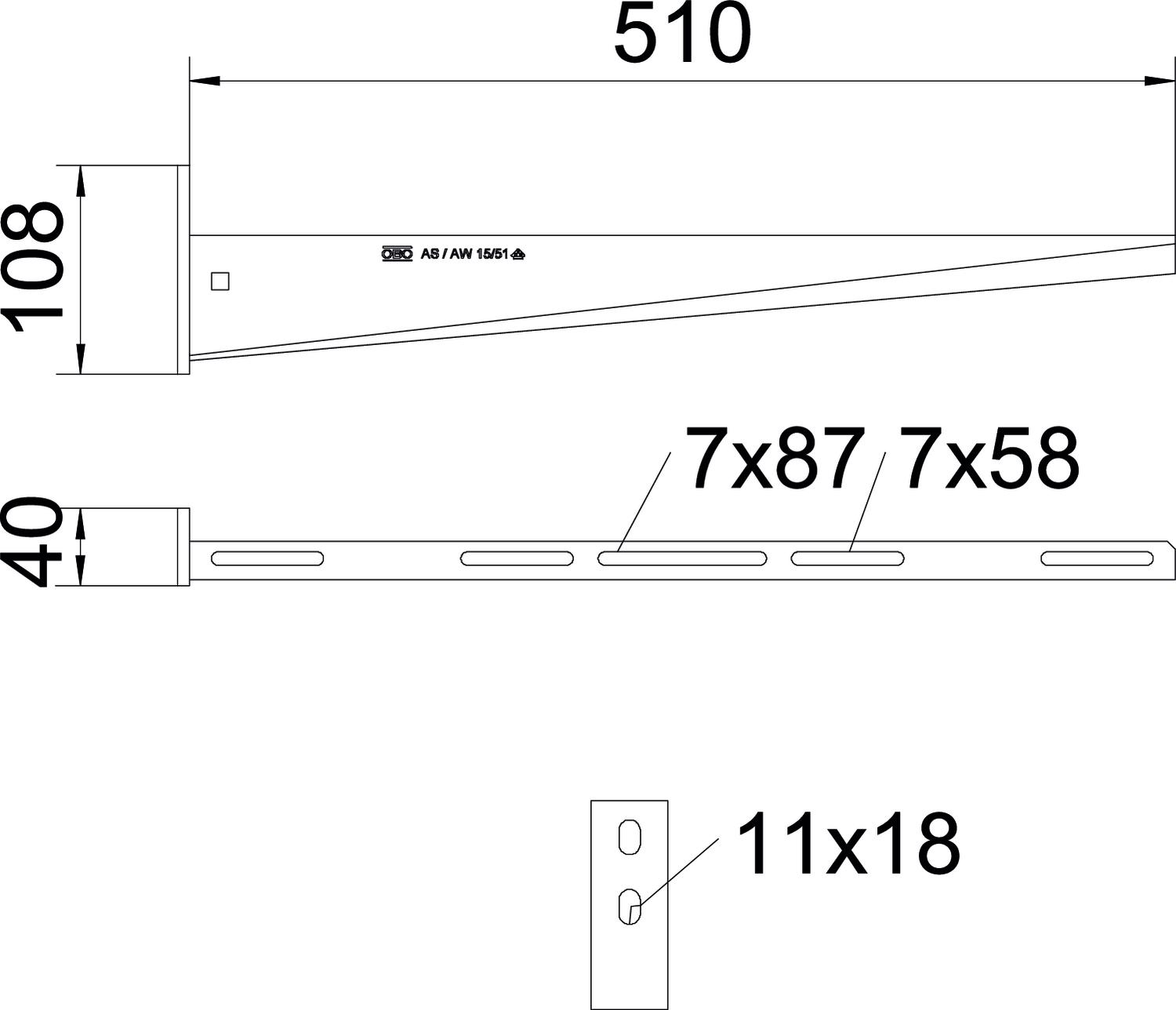

Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 1,8192 kg CO2e / 1 Piece Colour zinc Dimension B510mm Dimension A 40 mm Dimension B 510 mm Dimension H 108 mm F in kN 1,5 kN Height 2,83 in Height 108 mm Hole diameter 11 mm Length 40 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 20 in Width 510 mm Technical data
Load diagram, bracket, type AW 15
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet AW 15 51 FT 2L / 6420924 , 0.27MB , pdfEU declaration of conformity AW 15 51 FT 2L / 6420924 , 0.11MB , pdfUK Declaration of Conformity AW 15 51 FT 2L / 6420924 , 0.09MB , pdfREACH Declaration of conformity AW 15 51 FT 2L / 6420924 , 0.12MB , pdfRoHS Declaration of conformity AW 15 51 FT 2L / 6420924 , 0.13MB , pdfEnvironmental Product Declaration (EPD) AW 15 51 FT 2L / 6420924 , 1.48MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
