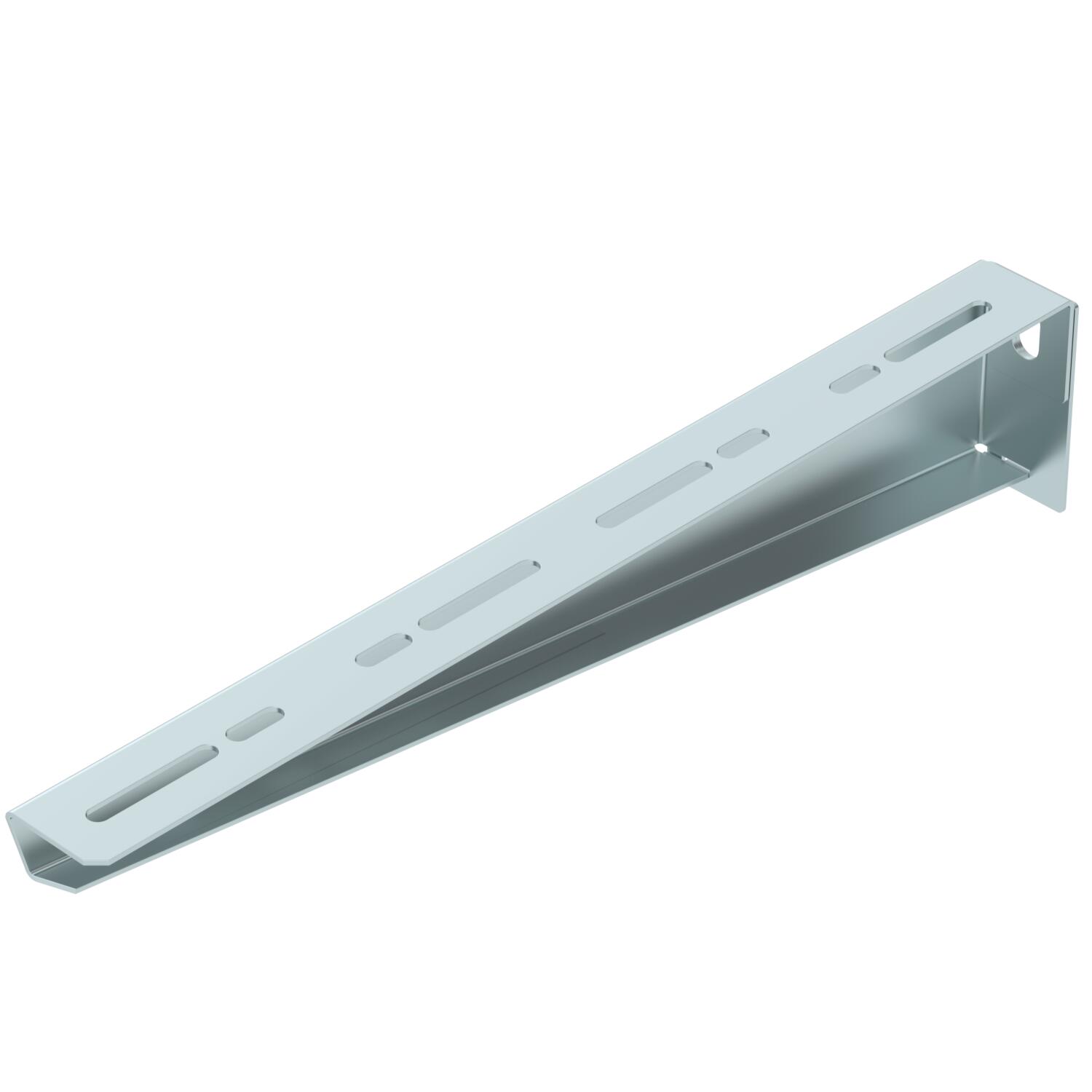

Wall and support bracket MWA 12 FS
Item no. 6424714 | EAN 4012196999255
- Product description
-
Product descriptionLight-duty wall and support bracket with folded design.
Without bolt M10 x 25 for fastening to U supports.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 1,8991 kg CO2e / 1 Piece Colour zinc Dimension B410mm Dimension A 38 mm Dimension B 410 mm Dimension H 83 mm F in kN 1,2 kN Height 16 in Height 83 mm Hole diameter 11 mm Length 38 mm Maintain electrical functions yes Material Steel Rustproof steel, pickled no Surface Strip galvanized Version for Wall and support bracket Width 410 mm Width 3,27 in - All types
- Downloads
-
Data sheet MWA 12 41 FS / 6424714 , 0.18MB , pdfEU declaration of conformity MWA 12 41 FS / 6424714 , 0.11MB , pdfUK Declaration of Conformity MWA 12 41 FS / 6424714 , 0.09MB , pdfREACH Declaration of conformity MWA 12 41 FS / 6424714 , 0.12MB , pdfRoHS Declaration of conformity MWA 12 41 FS / 6424714 , 0.13MB , pdfEnvironmental Product Declaration (EPD) MWA 12 41 FS / 6424714 , 1.48MB , pdfMounting instructions Mounting instructions, U support systems , 2.02MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
