Wall connection set, 2-sided, for corner mounting, duct height 40 mm, FS
Item no. 7218134 | EAN 4012197310622
- Product description
-

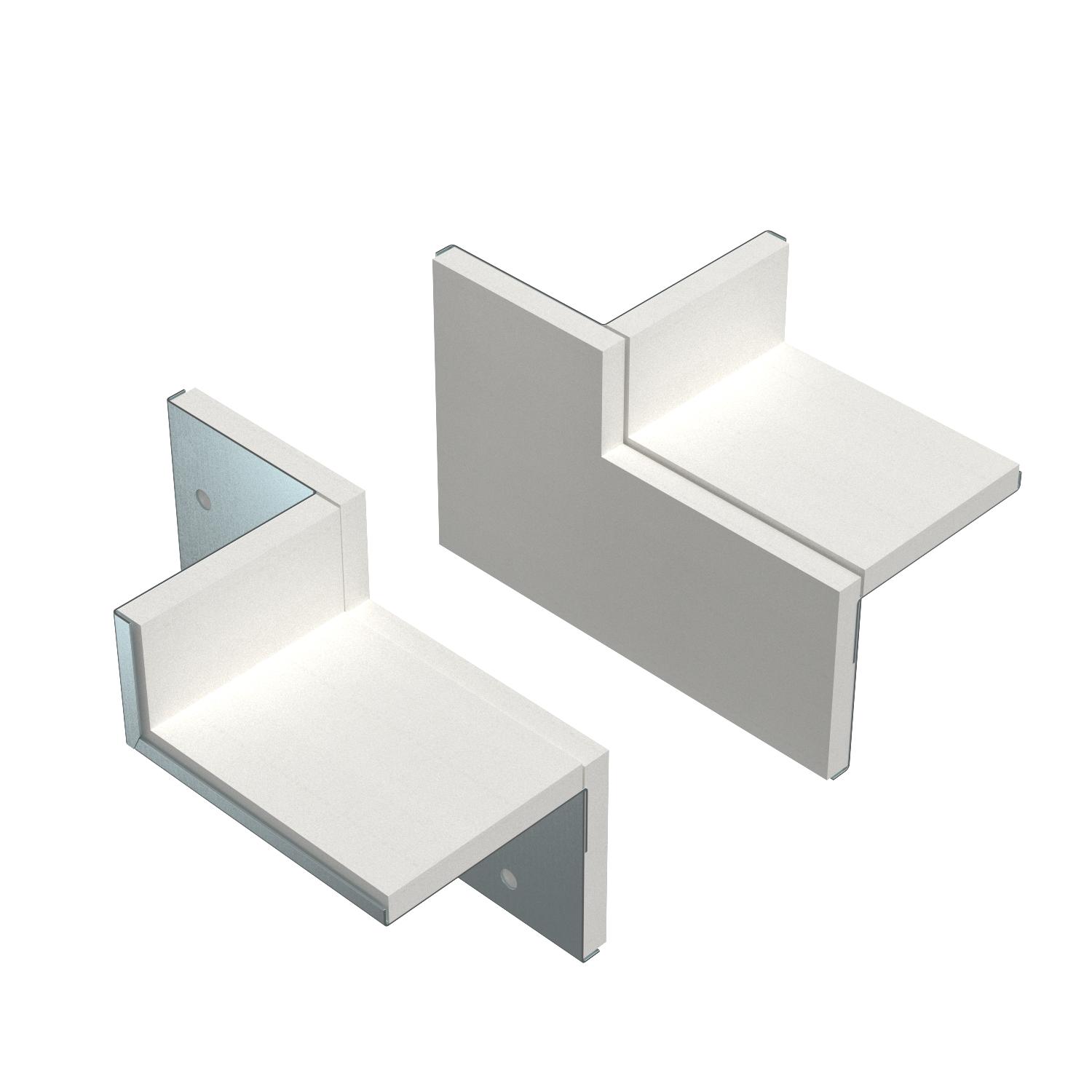

Product descriptionWall connection collar, 2-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations in room corners. Set consisting of 2 opposing components, suitable for ceiling or wall mounting of the installation duct.
-
- Technical data
-
Technical data
Accessories yes Colour zinc Dimension 85x175x117 Material Steel Product series PYROLINE® rapid PLM ROHS-conformant yes Spare part no Surface Strip galvanised Type of accessory Wall connection collar Dimensions

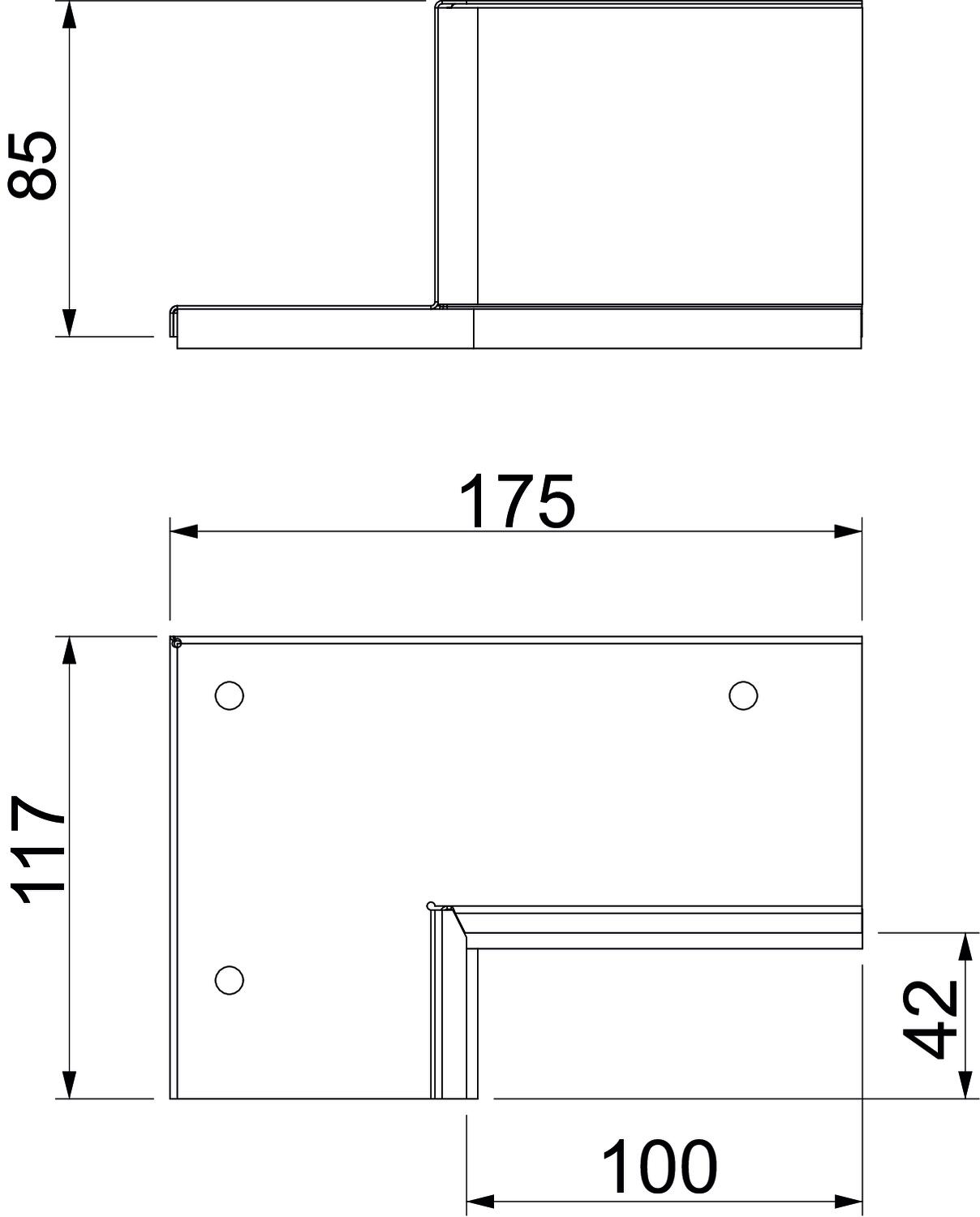

Dimension b 100 mm Dimension B 175 mm Dimension d 42 mm Dimension H 117 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,74 kg CO2e / 1 Piece CO₂ Footprint (GWP) 2,74 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet PLM CC 0410 FS / 7218134 , 0.17MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM CC 0410 FS / 7218134 , 0.11MB , pdfDeclaration of performance PLM CC 0410 FS / 7218134 , 0.78MB , pdfREACH Declaration of conformity PLM CC 0410 FS / 7218134 , 0.13MB , pdfRoHS Declaration of conformity PLM CC 0410 FS / 7218134 , 0.13MB , pdfLabel approval VDE marks approval PYROLINE Rapid PLM , 0.27MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
