Wall connection set, double-sided, for corner mounting, duct height 120 mm, FS
Item no. 7218142 | EAN 4012197310660
- Product description
-

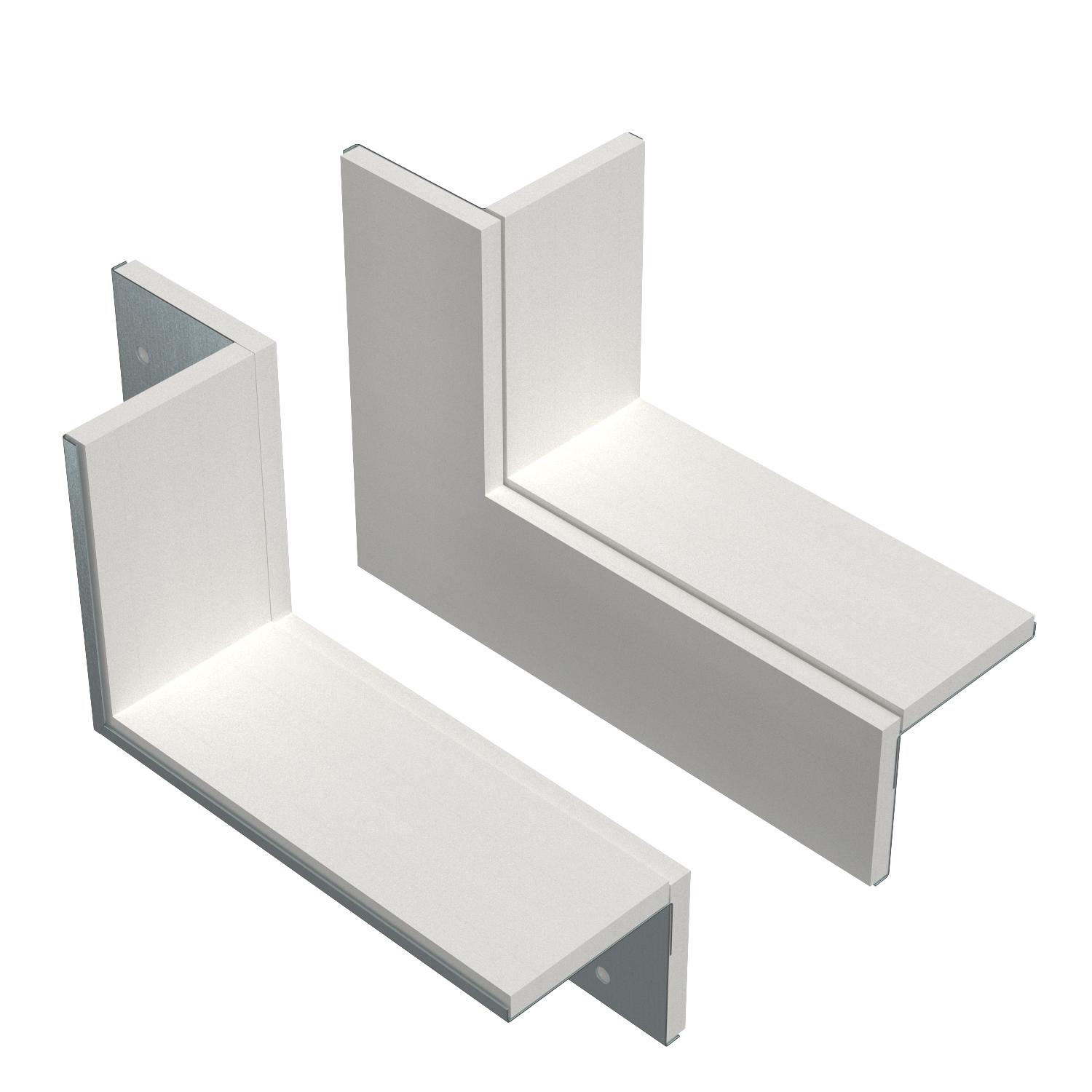

Product descriptionWall connection collar, 2-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations in room corners. Set consisting of 2 opposing components, suitable for ceiling or wall mounting of the installation duct.
-
- Technical data
-
Technical data
Accessories yes Colour zinc Dimension 85x275x197 Material Steel Spare part no Surface Strip galvanised Type of accessory Wall connection collar Dimensions

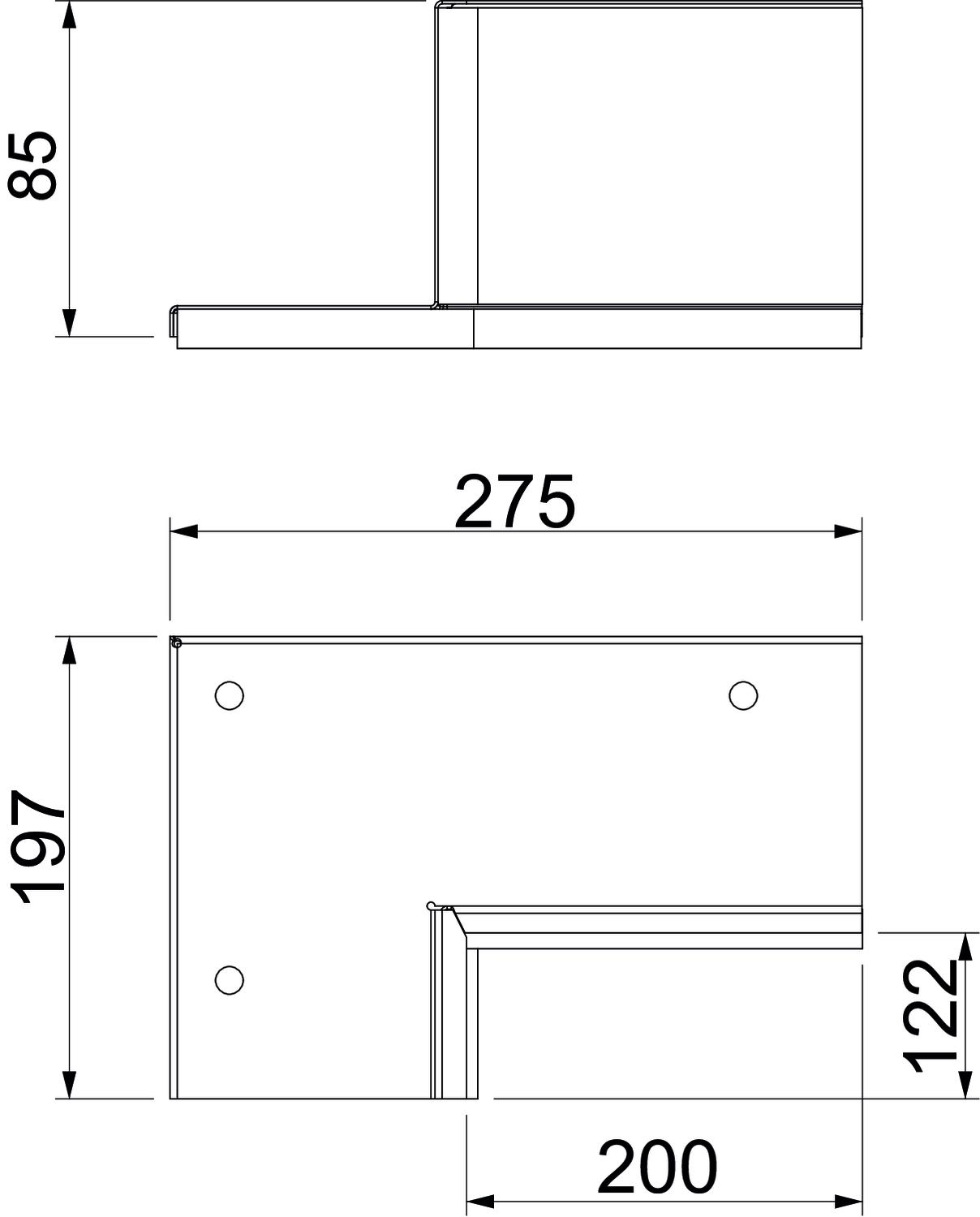

Dimension b 200 mm Dimension B 275 mm Dimension d 122 mm Dimension H 197 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 4,524 kg CO2e / 1 Piece CO₂ Footprint (GWP) 4,524 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet PLM CC 1220 FS / 7218142 , 0.16MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM CC 1220 FS / 7218142 , 0.11MB , pdfDeclaration of performance PLM CC 1220 FS / 7218142 , 0.78MB , pdfREACH Declaration of conformity PLM CC 1220 FS / 7218142 , 0.13MB , pdfRoHS Declaration of conformity PLM CC 1220 FS / 7218142 , 0.13MB , pdfLabel approval VDE marks approval PYROLINE Rapid PLM , 0.27MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
