Wide span cable tray WKSG 110 A2

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRVL 110 should be ordered separately and in the appropriate quantity.

Technical data

Colour	stainless steel
Connector version	Without connectors
Dimension	110x200x6000
Dimension	110 X 200
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Stainless steel 1.4301
Mounting perforation in base	yes

Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	20200 mm²
Usable cross-section	202 cm²
Usable length	6000 mm
Wide-span version	yes

Length	6000 mm
Width	200 mm

CO2 Footprint (GWP) Cradle-to-Gate	35,9073 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	35,9073 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 120 A2	no	6000 mm	200 mm	2 mm	6098161	m	6 m
WKSG 130 A2	no	6000 mm	300 mm	2 mm	6098165	m	6 m
WKSG 140 A2	no	6000 mm	400 mm	2 mm	6098169	m	6 m
WKSG 150 A2	no	6000 mm	500 mm	2 mm	6098173	m	6 m
WKSG 160 A2	no	6000 mm	600 mm	2 mm	6098177	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle A2	WDRL 1116 20 A2	6227360	m	3 m
Straight connector A2	WRVL 110 A2	6091229	piece	2 piece

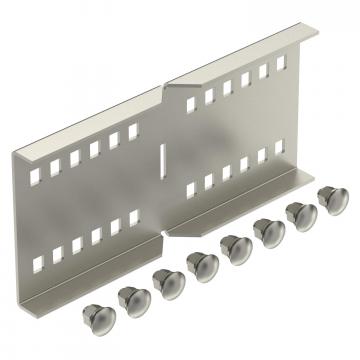

Straight and angle connector A2	WRWVK 110 A2	6091393	piece	2 piece
Adjustable connector A2	WRGV 110 A2	6091338	piece	2 piece
Corner extension piece 110 A2	WEAS 110 A2	6098483	piece	1 piece
Barrier strip 85 A2	TSG 85 A2	6062173	m	3 m
