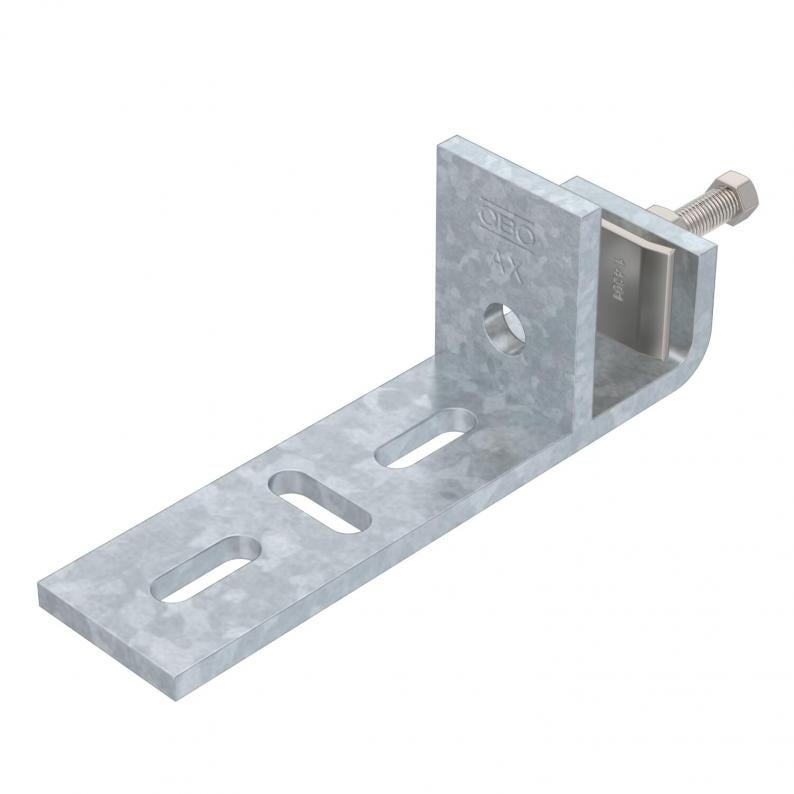

Beam clamp, vertical BFK S 100 FT
Tip BFK S 100 FT
Br.art. 6003902
EAN 4012197477172
Br.art. / Tip
kl. PJ: 10 Komad
10Komad
Komad
Opis
Beam clamp for mounting light components on vertical steel beams. Suitable, for example, for mesh cable trays and cable trays to 300 mm width or clips. The direction of the cable support system attached to the beam clamp is vertical.
Tehnički podaci
Dimenzije
| Dužina | 148 mm |
|---|---|
| Širina | 110 mm |
| Visina | 58 mm |
Tehnički podaci
| Nerđajući čelik, nagrižen | ne |
|---|---|
| Debljina materijala | 6 mm |
| Usaglašeno sa ROHS | da |
| Temperaturna oblast primene min. | -20 °C |
| Temperaturna oblast primene maks. | 120 °C |
| Dimenzija | 154x58x40 |
| Površina | vruće pocinkano utapanjem |
| Materijal | Čelik |
| Boja | cink |
Podaci o životnoj sredini
| Packaging made completely from recycled cardboard | да |
|---|---|
| Packaging without plastic | да |
Preuzimanja
0 je izabrano
Informativni list (1)
Objašnjenja (4)
Uputstva i pomoć (1)
Slike proizvoda (2)
Preuzimanja 3D podataka (1)
Varijante
Tip
Br.art.
BFK S 100 FT
6003902
BFK S 200 FT
6003904
BFK S 250 FT
6003906
BFK S 300 FT
6003908
BFK S 100 FT
Br.art.
6003902
BFK S 200 FT
Br.art.
6003904
BFK S 250 FT
Br.art.
6003906
BFK S 300 FT
Br.art.
6003908
