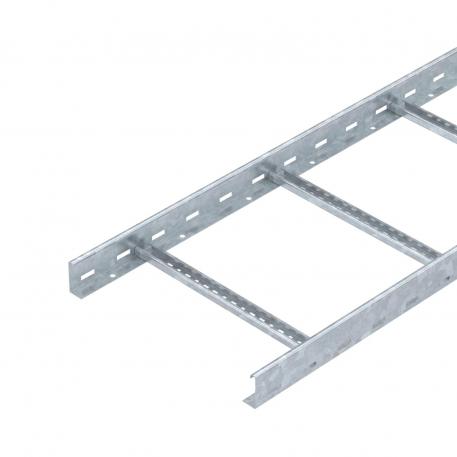

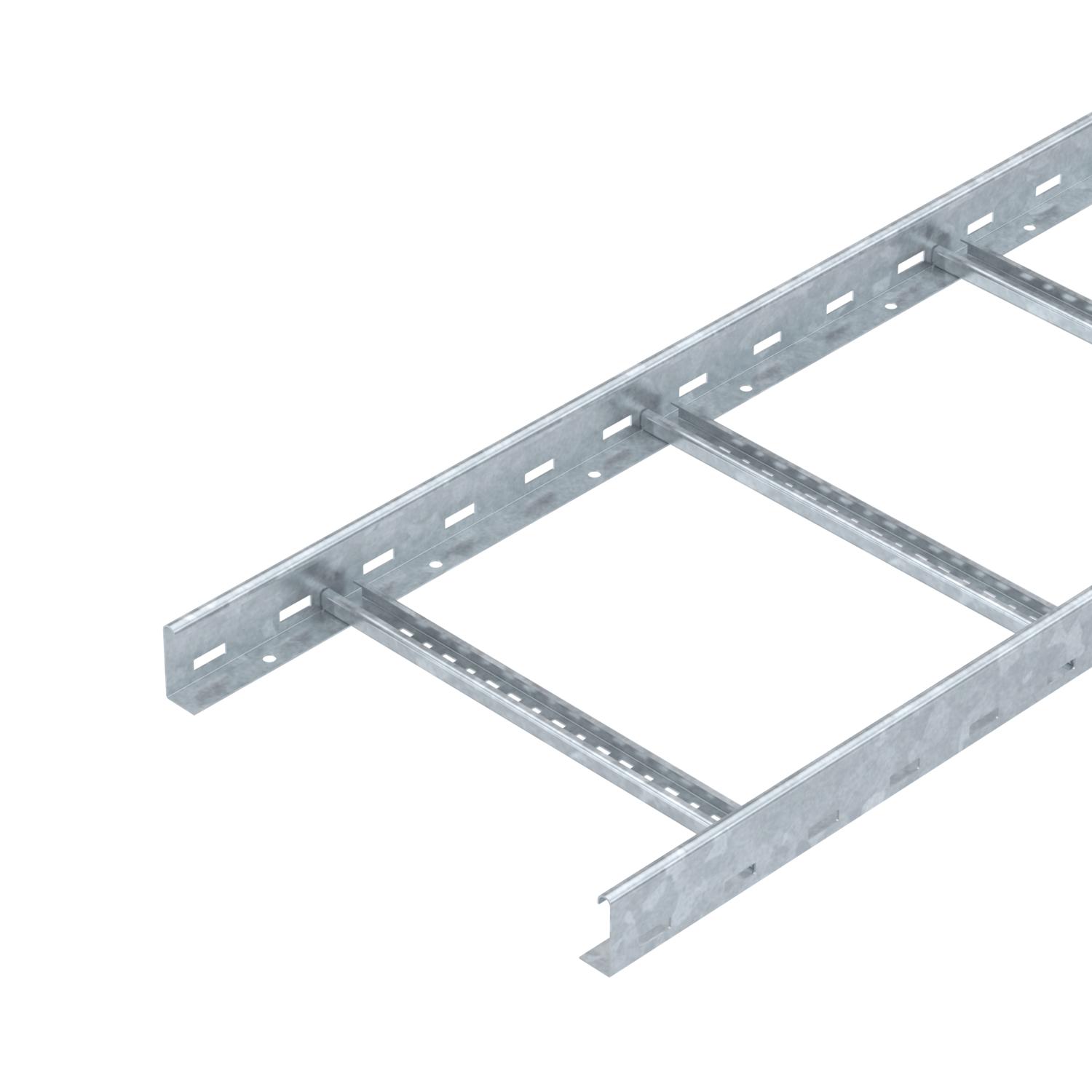

Cable ladder LG 60, 6 m VS FT 6000 | 400 | 1.5 | yes | Steel | Hot-dip galvanised

Cable ladder LG 60, 6 m VS FT

Item no. 6208656 | EAN 4012195064367

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

The cable ladder is shipped folded up.

Matching clamp clip 2056 H foot, type BS-H...

The cable ladders in the widths 200 mm to 400 mm are also approved for vertical mounting as a vertical ladder in systems that guarantee the maintenance of electrical functionality according to DIN 4102 Part 12. Cables can be mounted with the clamp clip approved for the maintenance of electrical function, type 2056 M.

Technical data

Technical data

Colour	zinc
Dimension	60x400x6000
Dimension	60x400x6000
Fastening of rung	Blind riveted
Fire protection	Maintenance of electrical function of standard support structure
Maintain electrical functions	yes
Material	Steel
Product series	LG Series
Rail thickness	1,5 mm
ROHS-conformant	yes

Rung distance	300 mm
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile
Surface	Hot-dip galvanised
Usable cross-section	198 cm²
Usable cross-section	19800 mm²
Version of the rungs	Profile perforated
Wide-span version	no

Dimensions

Dimension B	400 mm
Height	60 mm
Length	6000 mm

Rung slot dimension	16,50
Width	400 mm

Loads

Support spacing 1.5 m	3,1 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	1,1 kN/m

Support spacing 3.5 m	0,75 kN/m
Support spacing 4.0 m	0,45 kN/m
Support spacing 4.5 m	0,3 kN/m
Support spacing 5.0 m	0,15 kN/m

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	7,3337 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	7,3337 kg CO₂e
Declared Unit	Metres

Declared Unit Quantity	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

Load diagram, cable ladder, type LG 60 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 VS 6 FT	6000 mm	200 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6208650	m	6 m
LG 630 VS 6 FT	6000 mm	300 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6208653	m	6 m
LG 640 VS 6 FT	6000 mm	400 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6208656	m	6 m
LG 650 VS 6 FT	6000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6208659	m	6 m
LG 660 VS 6 FT	6000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6208661	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FT	DRL 400 FT	6051413	m	3 m
Straight connector FT	LVG 60 FT	6208843	piece	10 piece
Adjustable connector FT	LGVG 60 FT	6208944	piece	10 piece
Expansion connector	LDVG 60 FT	6208970	piece	2 piece
Multifunctional connector FT	LMFV 640 FT	6225734	piece	1 piece

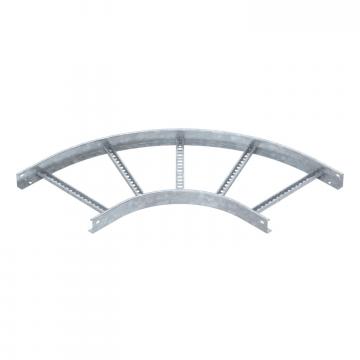

90° bend 60 FT	LB 90 640 R3 FT	6225066	piece	1 piece

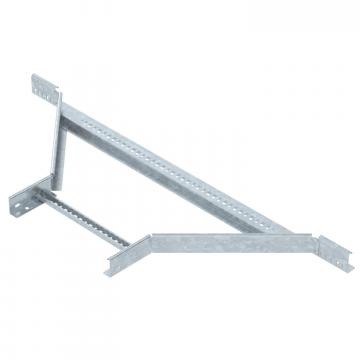

Add-on tee 60 FT	LAA 640 R3 FT	6225874	piece	1 piece
Adjustable bend element 60 FT	LGBE 640 FT	6225474	piece	1 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair
Barrier strip 45 DD	TSG 45 DD	6062321	m	3 m
Support plate	LALB 40 FT	6221874	piece	1 piece
Drop-out plate FT	LAB 40 FT	6220452	piece	1 piece
