Cable ladder LG 60, 6 m VS FT 6000 | 500 | 1.5 | no | Steel | Hot-dip galvanised

Cable ladder LG 60, 6 m VS FT

Item no. 6208659 | EAN 4012195064374

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

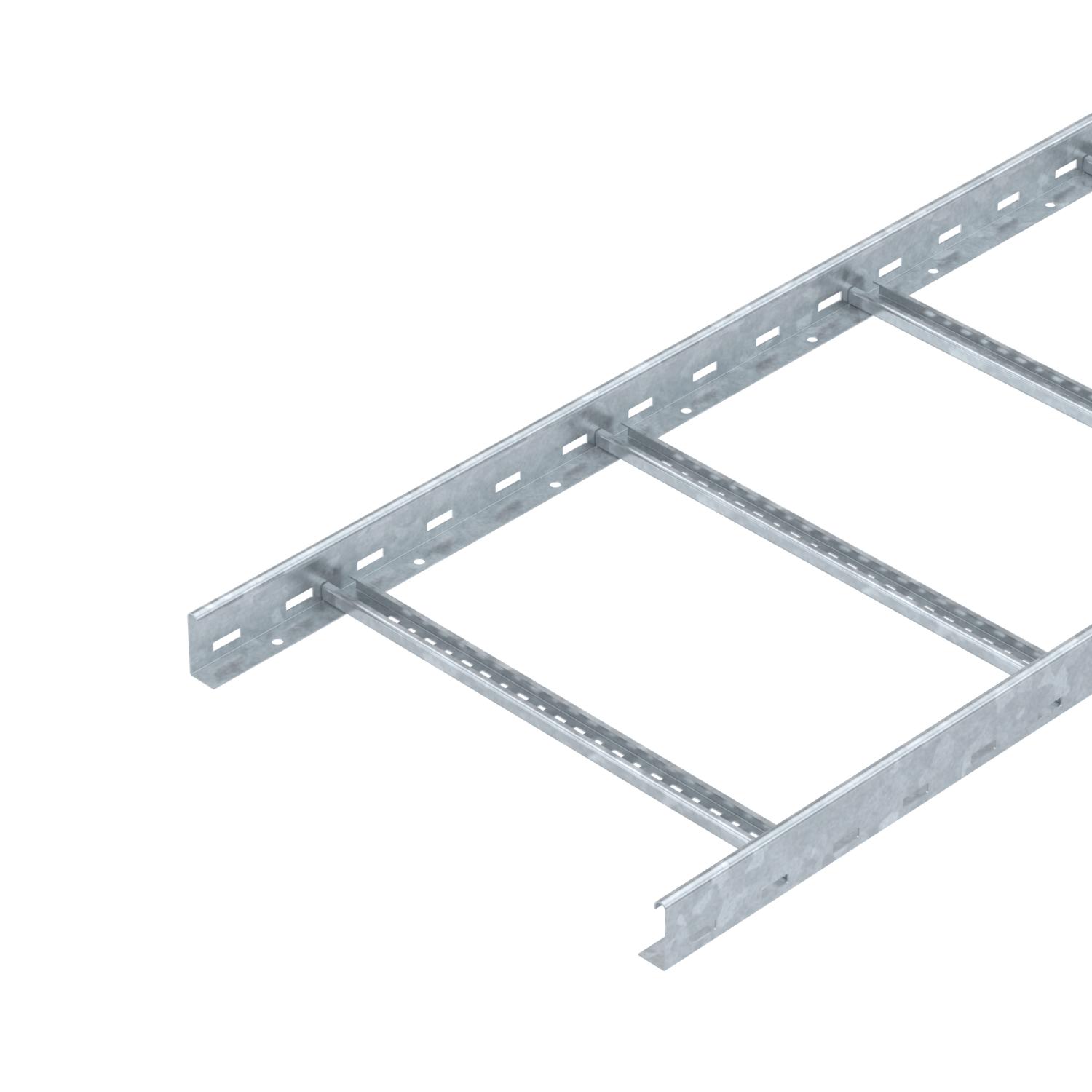

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

The cable ladder is shipped folded up.

Matching clamp clip, type 2056 H foot, type BS-H...

Technical data

Technical data

Colour	zinc
Dimension	60x500x6000
Dimension	60x500x6000
Fastening of rung	Blind riveted
Maintain electrical functions	no
Material	Steel
Product series	LG Series
Rail thickness	1,5 mm
ROHS-conformant	yes

Rung distance	300 mm
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile
Surface	Hot-dip galvanised
Usable cross-section	24800 mm²
Usable cross-section	248 cm²
Version of the rungs	Profile perforated
Wide-span version	no

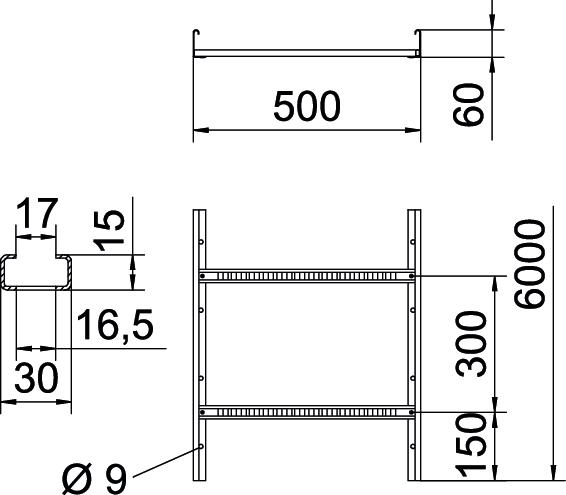

Dimensions

Dimension B	500 mm
Height	60 mm
Length	6000 mm

Rung slot dimension	16,50
Width	500 mm

Loads

Support spacing 1.5 m	3,1 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	1,1 kN/m

Support spacing 3.5 m	0,75 kN/m
Support spacing 4.0 m	0,45 kN/m
Support spacing 4.5 m	0,3 kN/m
Support spacing 5.0 m	0,15 kN/m

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	7,8759 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	7,8759 kg CO₂e
Declared Unit	Metres

Declared Unit Quantity	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

Load diagram, cable ladder, type LG 60 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 VS 6 FT	6000 mm	200 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6208650	m	6 m
LG 630 VS 6 FT	6000 mm	300 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6208653	m	6 m
LG 640 VS 6 FT	6000 mm	400 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6208656	m	6 m
LG 650 VS 6 FT	6000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6208659	m	6 m
LG 660 VS 6 FT	6000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6208661	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FT	DRL 500 FT	6051448	m	3 m
Straight connector FT	LVG 60 FT	6208843	piece	10 piece
Adjustable connector FT	LGVG 60 FT	6208944	piece	10 piece
Expansion connector	LDVG 60 FT	6208970	piece	2 piece
Multifunctional connector FT	LMFV 650 FT	6225736	piece	1 piece

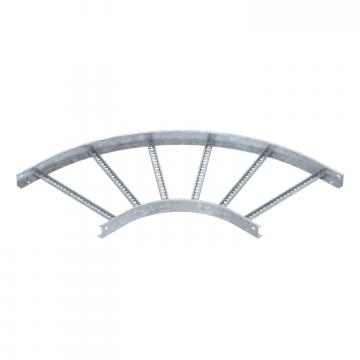

90° bend 60 FT	LB 90 650 R3 FT	6225068	piece	1 piece

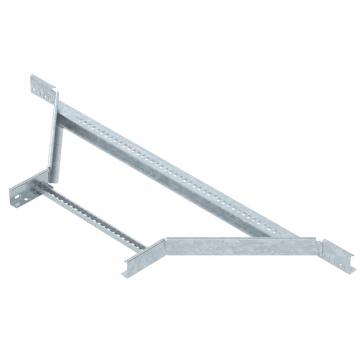

Add-on tee 60 FT	LAA 650 R3 FT	6225876	piece	1 piece
Adjustable bend element 60 FT	LGBE 650 FT	6225476	piece	1 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair
Barrier strip 45 DD	TSG 45 DD	6062321	m	3 m
Drop-out plate FT	LAB 50 FT	6220460	piece	1 piece
