Flat cable threaded connection, PG thread
Item no. 2012782 | EAN 4012195156918
- Product description
-

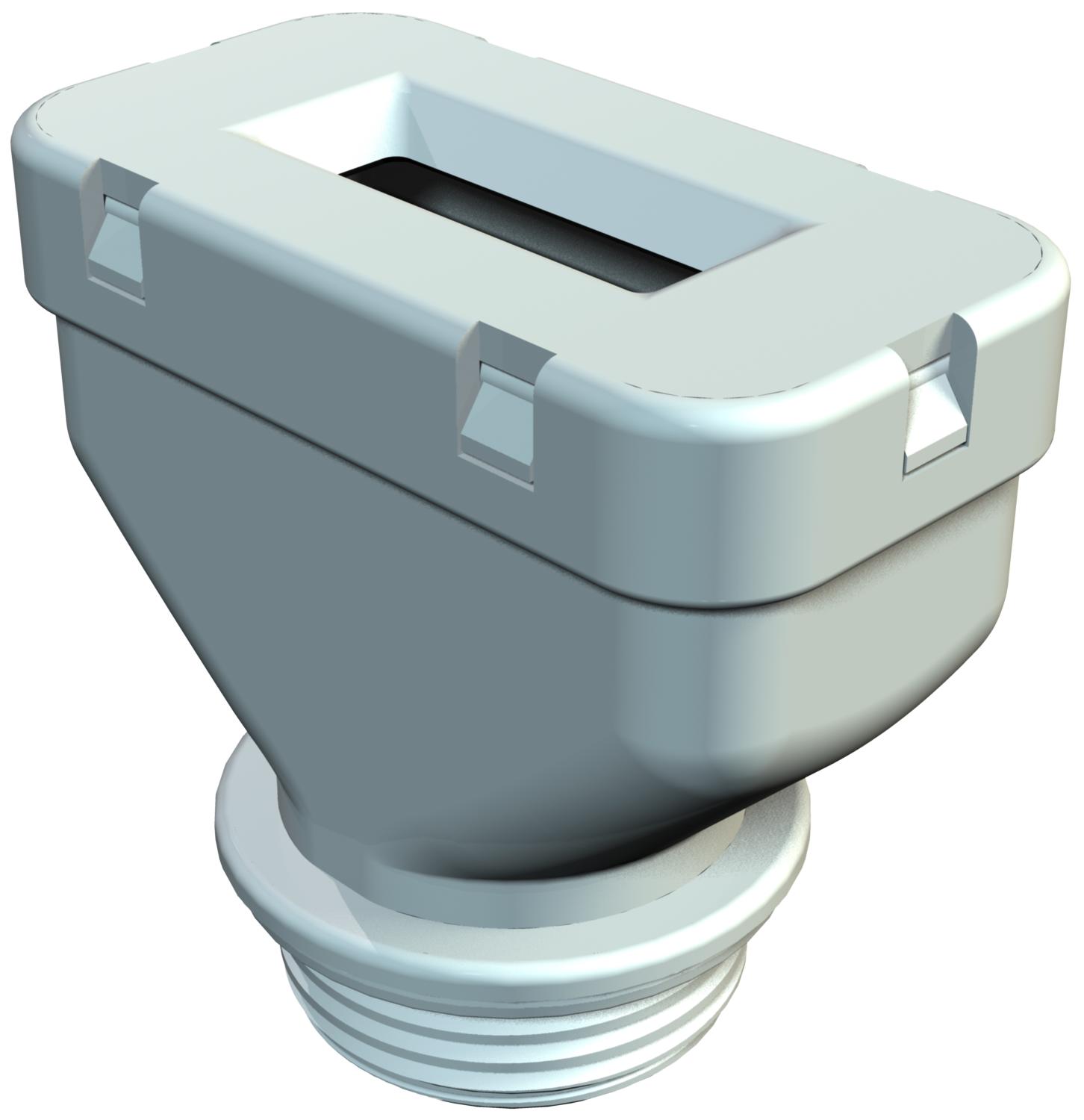

Product descriptionFlat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.
-
- Technical data
-
Technical data
Bend protection no Colour Stone grey; RAL 7030 Dimension PG21 Fibre-glass reinforced no Flat cable gland yes For Ex zone Without Impact-resistant no Material Polyethylene Product series V-TEC Protection rating IP31 ROHS-conformant yes Sealing insert, multiple no Strain relief option no Thread Pg 21 Thread type PG Type of seal Sealing ring Version for Straight With locknut no Dimensions

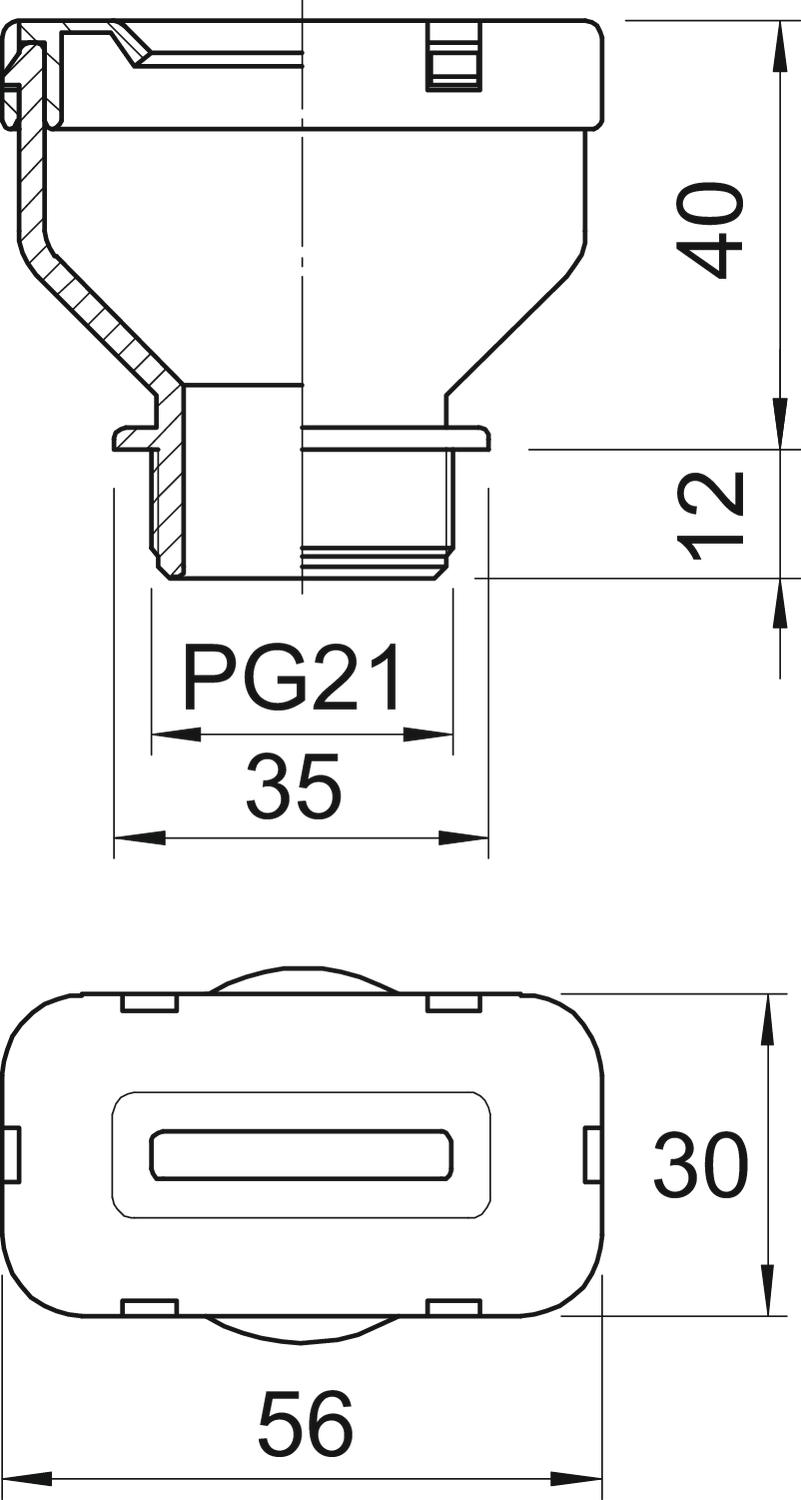

Dimension A 30 mm Dimension B 56 mm Dimension D 35 mm Dimension G PG21 mm Dimension L 52 mm Dimension L1 12 mm Dimension L2 40 mm Flat cable/width, max. 33 mm Flat cable/width, min. 30 mm Flat cables/thickness, max. 8 mm Flat cables/thickness, min. 6 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,084 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,084 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet 106 FL 21 8 33 / 2012782 , 0.19MB , pdfEU declaration of conformity 106 FL 21 8 33 / 2012782 , 0.10MB , pdfUK Declaration of Conformity 106 FL 21 8 33 / 2012782 , 0.09MB , pdfREACH Declaration of conformity 106 FL 21 8 33 / 2012782 , 0.12MB , pdfRoHS Declaration of conformity 106 FL 21 8 33 / 2012782 , 0.13MB , pdf
