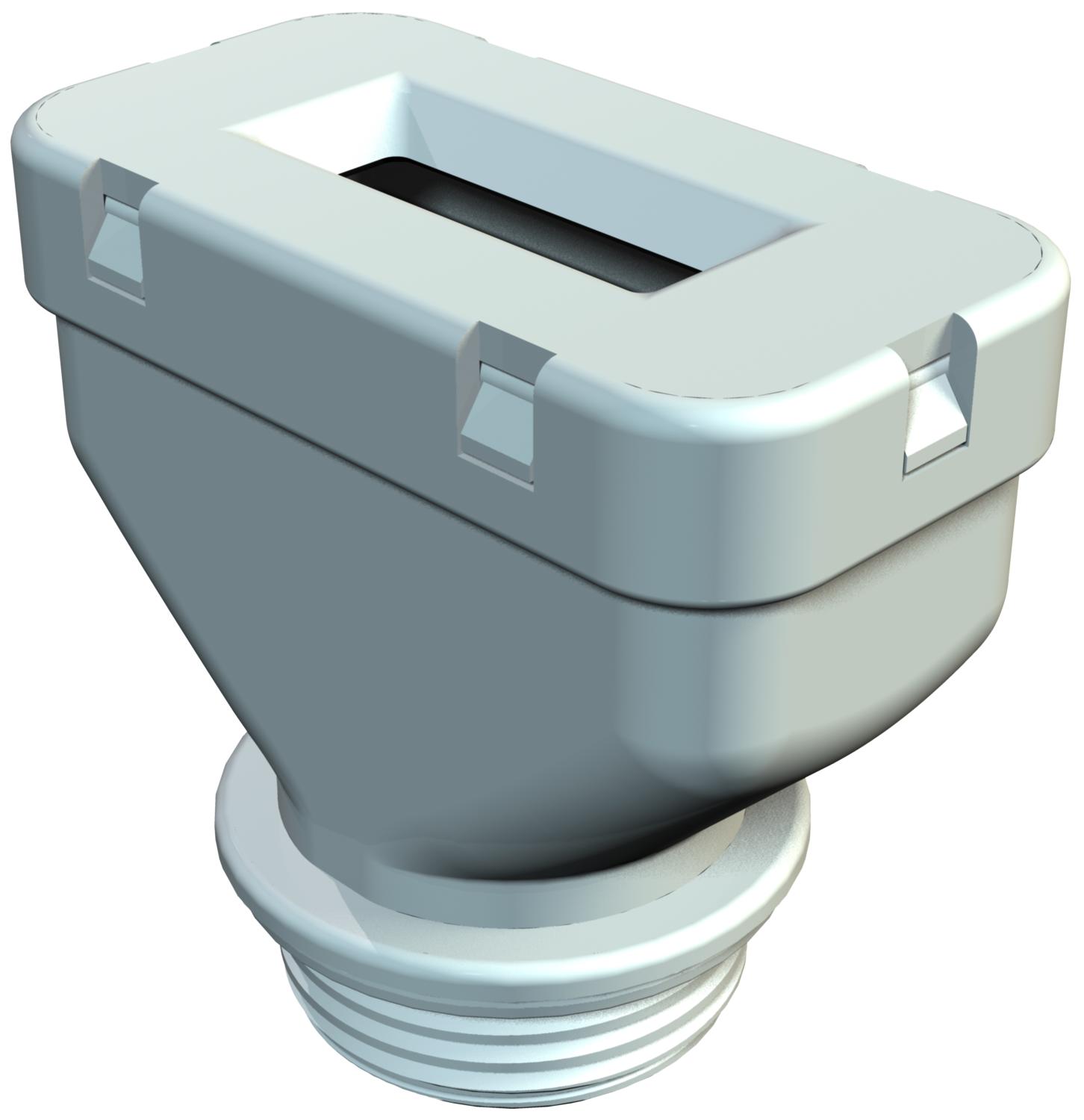

Flat cable threaded connection, PG thread rectangular version, stone grey
Item no. 2012774 | EAN 4012195156857
- Product description
-
Product descriptionFlat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.
-
- Technical data
-
Technical data
Bend protection no Colour Stone grey; RAL 7030 Dimension PG29 Fibre-glass reinforced no Flat cable gland yes For Ex zone Without Impact-resistant no Material Polyethylene Protection rating IP31 Sealing insert, multiple no Strain relief option no Thread Pg 29 Thread type PG Type of seal Sealing ring With locknut no Dimensions

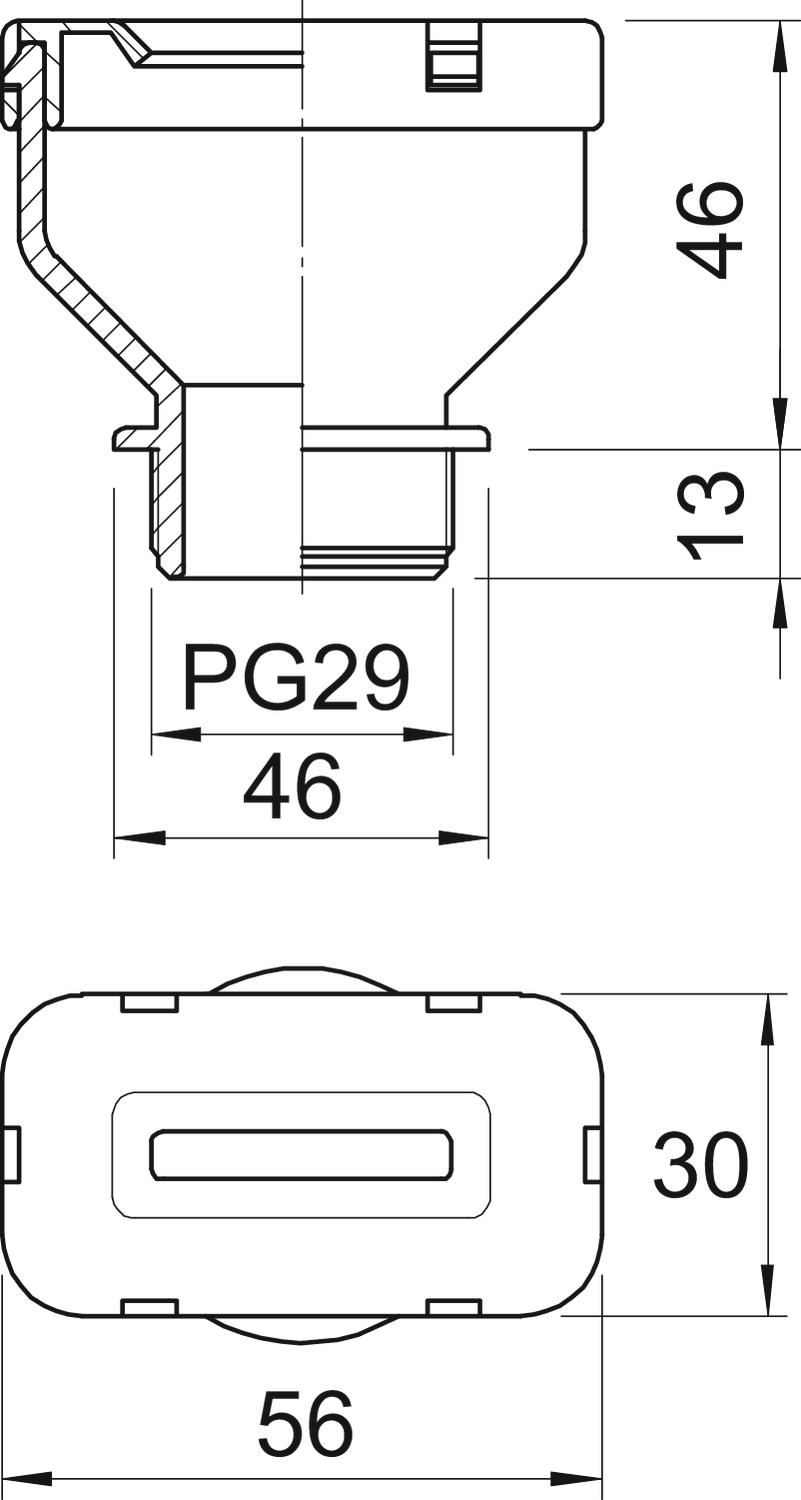

Dimension A 30 mm Dimension B 56 mm Dimension D 46 mm Dimension G PG29 mm Dimension L 59 mm Dimension L1 13 mm Dimension L2 46 mm Flat cable/width, max. 40 mm Flat cable/width, min. 37 mm Flat cables/thickness, max. 14 mm Flat cables/thickness, min. 11 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1102 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1102 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet 106 FL 29 14 40 / 2012774 , 0.22MB , pdfEU declaration of conformity 106 FL 29 14 40 / 2012774 , 0.10MB , pdfUK Declaration of Conformity 106 FL 29 14 40 / 2012774 , 0.09MB , pdfREACH Declaration of conformity 106 FL 29 14 40 / 2012774 , 0.12MB , pdfRoHS Declaration of conformity 106 FL 29 14 40 / 2012774 , 0.13MB , pdf
