Hanger bolt set for PV module mounting, corrugated roof 200 | 12

Hanger bolt set for PV module mounting, corrugated roof

Br.art. 5901826 | EAN 4012197459802

Br.art. / Tip

Dužina

Prečnik drške

Opis proizvoda

Opis proizvoda

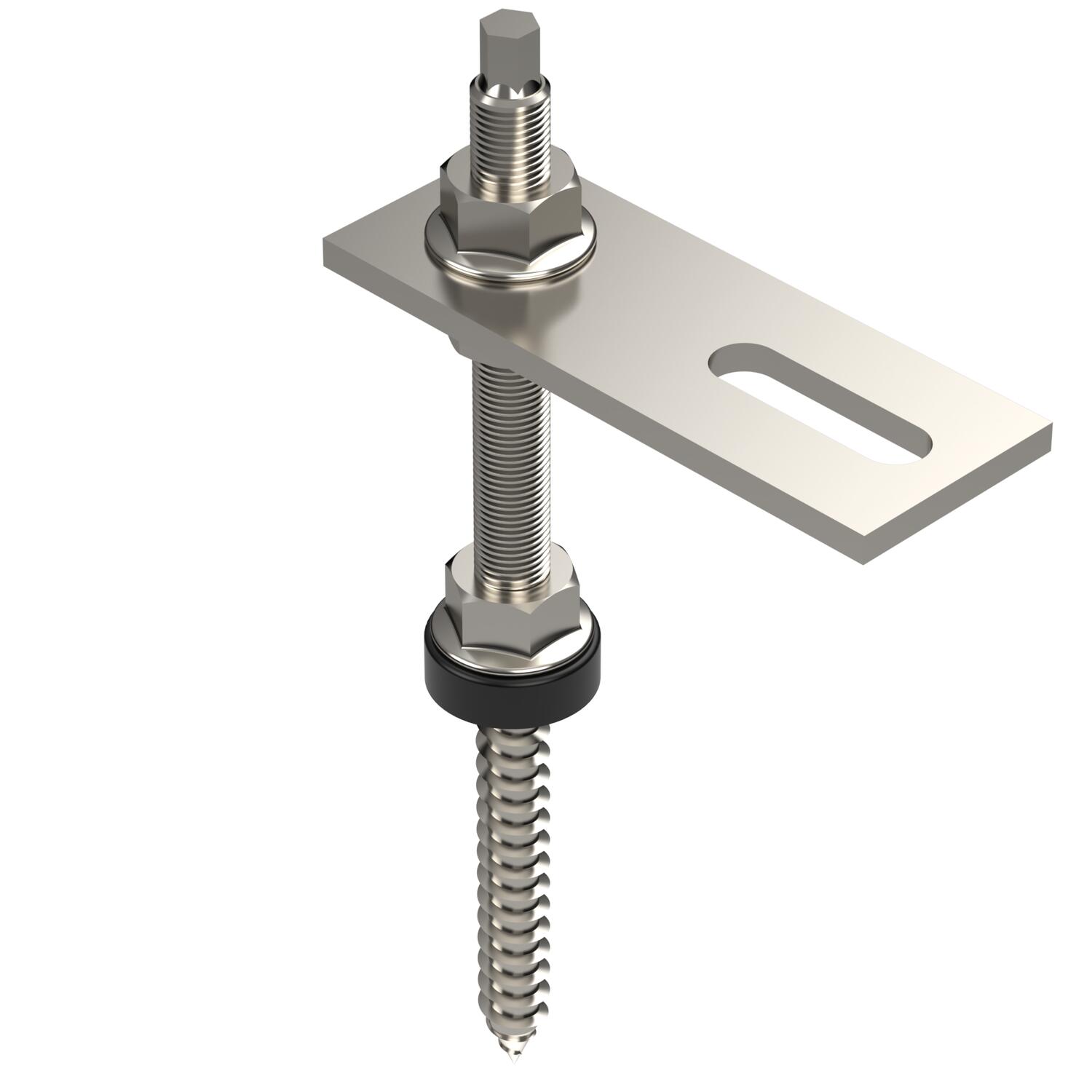

Hanger bolt set to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for fastening in the wooden substructure of corrugated roofs made out of plastic, tin or fibre cement. Set consists of hanger bolt with pre-mounted EPDM seal, adapter plate for the support profile and additional nuts for the optional height adjustment. Fastening of the support profile with screw with slot nut, type SKS HM (please order separately).

Tehnički podaci

Tehnički podaci

Boja	oplemenjeni čelik
CO2 otisak (GWP) od kolevke do kapije	0,0083 kg CO2e / 1 Komad

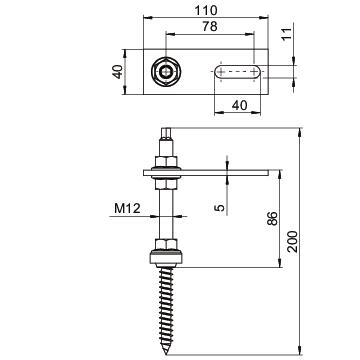

Dimenzija	200x40x30
Dimenzija G	64 mm
Dimenzija L1	100 mm
Dužina	200 mm
Materijal	plemeniti čelik, nerđajući 1.4301
Max. Roof structure strength	60 mm

Metrički navoj	12
Oblik glave	šestougao (heksagonal)
Prečnik	12 mm
Prečnik drške	12 mm
Vijčani sistem	šestougao (heksagonal)
Vijčani sistem	Hexagon head
Vrsta navoja	metrički
