Hanger bolt set for PV module mounting, corrugated roof
Br.art. 5901828 | EAN 4012197459826
- Opis proizvoda
-

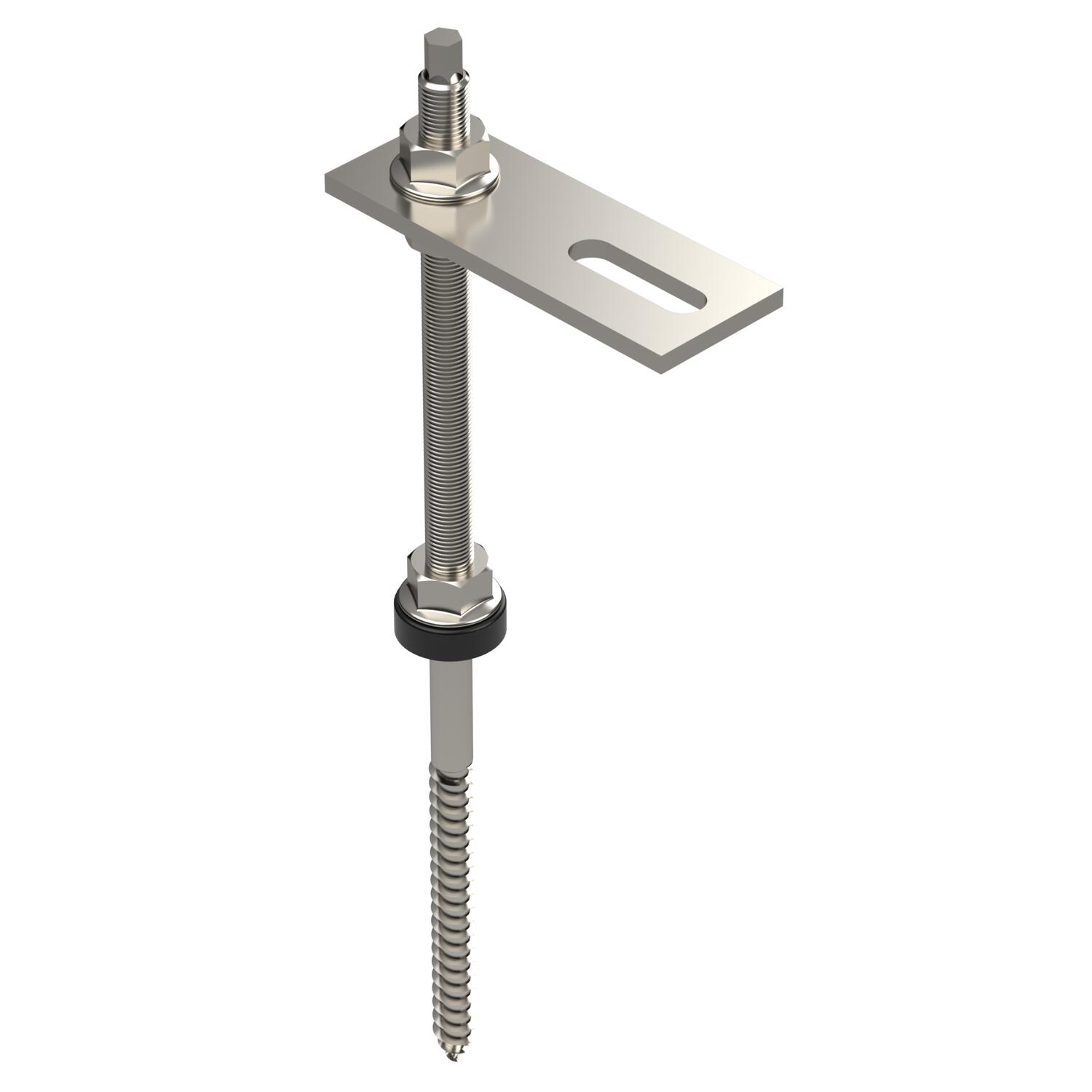

Opis proizvodaHanger bolt set to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for fastening in the wooden substructure of corrugated roofs made out of plastic, tin or fibre cement. Set consists of hanger bolt with pre-mounted EPDM seal, adapter plate for the support profile and additional nuts for the optional height adjustment. Fastening of the support profile with screw with slot nut, type SKS HM (please order separately).
-
- Tehnički podaci
-
Tehnički podaci

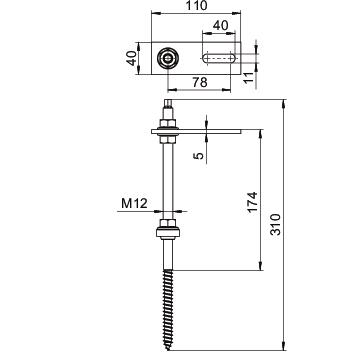

Boja oplemenjeni čelik CO2 otisak (GWP) od kolevke do kapije 0,0049 kg CO2e / 1 Komad Dimenzija 300x40x30 Dimenzija G 64 mm Dimenzija L1 180 mm Dužina 300 mm Materijal plemeniti čelik, nerđajući 1.4301 Max. Roof structure strength 140 mm Metrički navoj 12 Oblik glave šestougao (heksagonal) Prečnik 12 mm Prečnik drške 12 mm Vijčani sistem šestougao (heksagonal) Vijčani sistem Hexagon head Vrsta navoja metrički - Svi tipovi
- Preuzimanja
-
Informativni list STSS 12x300 A2 / 5901828 , 0.20MB , pdfUputstvo za montažu PV-Montagesysteme für Trapez- und Wellblechdächer , 2.53MB , pdfZa ovaj proizvod nema tenderskih specifikacija na raspolaganju
